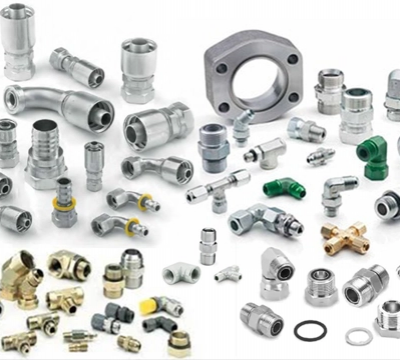

Female Male Thread, BSPP/BSPT/ Metric/NPT SS304 SS316 FORGED threaded Fitting Hex Nipple hydraulic fittings hydraulic adapters
High Quality Stainless Steel Threaded Fittings
High quality raw materials: We only use top quality stainless steel materials from reputable suppliers to ensure that the chemical composition and mechanical properties of the materials meet strict industry standards.
Advanced Manufacturing Process: We have advanced manufacturing equipment and processes, including precision cutting, bending, CNC manufacturing, etc., to ensure the dimensional accuracy and surface finish of our products. Strict
Quality Inspection: Each product undergoes strict quality inspection before leaving the factory to ensure that the product meets your needs and meets the industry standards.
Comprehensive services
Pre-sales service: understand your specific needs, customize the best solution for you, we have a professional technical team to provide you with comprehensive technical advice to solve your difficult problems in the design, processing and installation process.
In-sale service: customized production according to your drawings and requirements, professional production team to ensure a quick response to your order, we strictly implement the production process and quality control to ensure that each product meets your standards.
After-sales service: Provide 24/7 after-sales technical support to solve any problems you encounter in the process of product use.
Hydraulic Tube Fittings - DIN2353/ISO8434:Bite type tube fitting is a flareless metric fitting that consists of a body, a progressive ring/ferrule (sleeve) and a nut.
On assembly, two cutting edges of the ferrule/progressive ring bite into the outer surface of the tube ensuring the holding for high Tube pressure.
Bite type Hydraulic Tube Fittings and accessories are manufactured in accordance with DIN2353/ISO8434-1.
Hydraulic Tube Fittings (DIN2353/ISO8434) are commonly used in fluid power systems for connecting tubes or hoses. These fittings provide a reliable and leak-free connection by using a biting action to grip the tube.
Brief overview:Design: Hydraulic tube fittings typically consist of a body, a nut, a ferrule (also known as a progressive ring/cutting ring/sleeve or collar), and sometimes an elastomeric seal. The body contains a tapered surface or a series of sharp serrations that grip the tube when the nut is tightened.
Assembly: To assemble a bite-type fitting, the nut and ferrule are slid onto the tube, and then the tube is inserted into the body of the fitting. As the nut is tightened onto the body, it compresses the ferrule around the tube, causing it to bite into the tube surface and create a secure seal.
Materials: These fittings are often made from materials such as steel (MS/CS), stainless steel (SS304/SS316), or brass, depending on the application requirements. The choice of material depends on factors such as the operating pressure, temperature, and compatibility with the fluid being conveyed.
Size & Configurations: Hydraulic tube fittings are available in a range of sizes (For Ex: 06mm to 42mm) and configurations to accommodate different tube diameters and connection requirements. They may also be available with different end connections, such as NPT, BSPP, or SAE threads, to suit specific system designs.
Applications: These fittings are commonly used in various industries, including hydraulic systems in construction equipment, agricultural machinery, industrial machinery, and automotive applications.
Advantages: Hydraulic tube fittings offer several advantages, includingHigh pressure capability: They can withstand high-pressure hydraulic systems.
Vibration resistance: The biting action provides a secure connection that is less susceptible to loosening due to vibration.
Easy installation: They can be quickly and easily assembled with basic tools, making them suitable for on-site installations.
Reusability: In many cases, the fittings can be disassembled and reused, which can be cost-effective over the long term.
Overall, Hydraulic Tube Fittings are a popular choice for hydraulic systems due to their reliability, durability, and ease of installation
Material
ASTM
Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10,
00Cr17Ni14Mo2, ect.)
Surface
Transparent oil, rust-proof black oil or hot galvanized.
Applications
Petroleum, chemical, machinery, boiler, electric power, shipbuilding, construction, etc
Warranty
We guarantee 1 year product quality
Delivery time
7 after receipt of advanced payment ,Common size large quantity in stock
Payment term
T/T, L/C, D/P
>>
