Qiulin Hot Press Machine with Multilayer Synchronous Loading and Unloading Device

Product Description

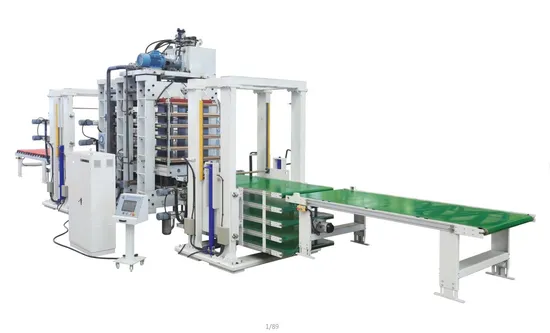

200T Hot Press unit with multilayer synchronous loading and unloading device TM-BY154X8/20(5)

1.Product name:	Belt conveyor BZY1113.7/27/920
Belt length:	2700mm
Belt width:	1370mm
Working height:	850-950mm(adjustable)
Speed of conveying:	15-30m/min(frequency control)
Installation power:	1.1kW
2. Product name:	loader BZX124×8/5N
Belt length:	2700mm
Belt width:	1350mm
Working layer:	5layer
Opening:	120mm
Speed of closing:	100mm/s
Speed of opening:	100mm/s
Loading way:	width direction, automatically, frequency control
Conveying speed:	15-30m/min
Installation power:	7.75kW
3. Product name:	Hot press BY154×8/20(5)
Total pressure:	2000kN
Working layer:	5
Opening:	120mm
Dimension of platen:	6-2700x1370x85mm
No. &diameter of oil cylinder:	5-Φ190mm
Working storke:	600mm
Speed of closing:	27mm/s
Rated pressure:	28MPa
Loading way:	width direction, automatically, frequency control
Speed of conveying:	15-30m/min
Maximum working temperature:	120ºC
Installation power:	22.75kW
144kW heating supply station
Heating power:	144kW
Heating way:	Electric heated with thermal oil
Hot oil pump flow:	20m³/h
Hot oil pump head:	32m
Motor power of heat oil pump:	7.5kW
4. Product name:	unloader BZX144×8/5N
Belt length:	2700mm
Belt width:	1350mm
Working layer:	5layer
Opening:	120mm
Speed of closing:	100mm/s
Speed of opening:	100mm/s
Loading way:	width direction, automatically, frequency control
Conveying speed:	15-30m/min
Installation power:	7.75kW
5. Product name:	Roller conveyor BZY3613.7/27/900
conveying length:	2700mm
conveying width:	1370mm
Working height:	850-950mm(adjustable)
Speed of conveying:	15-30m/min(frequency control)
Installation power:	1.5kW

Advantage:
1Cylinder:It is worked through excellent CNC precision machine tool.
2.It uses high quality oil seals to make sure good sealing.
1.Delivery and Package:
-We will take care of your machinery packages well.
-Our workers will make sure your machine clean before package.
-We will add stretch film for the whole machine and spare parts for delicate protection.
-We will make export standard strong wooden box case package as your request for the knocked down parts of machines.
2.Guarantee:
The main machine is guarantee for 12 months and the electric elements is guaranteed for 6 months.Within guarantee under normal using and maintenance.If the machine has something problem because of our quality fault you will get spare part for free. After the guarantee, you will get the cost price for accessories.You will also get technical support and service all the time.
3.Technical Support:
-Technical support by Phone,Email,Wechat 24 hours online
-We provide English version manual.
-Engineer available to service machinery overseas.
4.After sales service:
Our machine is installed and tested well before delivery.You can operation the machine immediately after received machine.If you don't know how to use the machine,we will offer you cost training until you can use machine freely.And if there is still any question, please contact us by Email, Phone, and we chat online service at any time.

---
