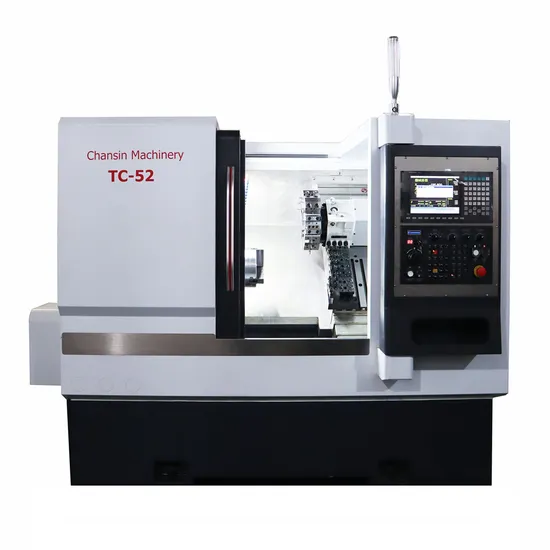

China Manufacturer High Speed Precision Spindle Slant Bed CNC Lathe Machinery TC-52
* Customized service provided
| Item | Specification |
| Maximum turning diameter of bed | Φ480mm |
| The maximum rotation diameter of the cutter board | Φ140mm |
| Maximum processing diameter (disk) | Φ450mm |
| Maximum Bar Hole Diameter | Φ52mm |
| Maximum Processing Length | 400mm |
| X-axis effective stroke (unilateral) | 450mm |
| Z-axis effective stroke | 420mm |
| X, Z axis rapid movement rate | 30m/min |
| X, Z axis servo motor | 1.8kw |
| Spindle nose type | A2-6 |
| Spindle through hole diameter | Φ66mm |
| Spindle speed | 4500rpm |
| Spindle servo motor | 7.5-11kw |
| Chuck and Rotary Cylinder Specifications | 8 inch |
| Spindle center to ground distance | 1050mm |
| Distance from spindle center to front door | 400mm |
| X, Z axis repeat positioning accuracy | ±0.003mm |
| X, Z axis positioning accuracy | ±0.005mm |
| Bed structure | 45 degree overall inclined bed |
| X-axis rail specification | 30mm roller standard |
| Z-axis rail specification | 35mm roller standard |
| X-axis screw diameter/pitch | Φ32mm/10mm |
| Z-axis screw diameter/pitch | Φ32mm/10mm |
| Handle Specifications | 25*25 |
| Boring Bar Specifications | Φ25mm |
| Length × width × height (including sheet metal, excluding chip conveyor) | 2230*1728*1825mm |
| Machine weight | About2800KG |
A1: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .Q2: What's your main products of your company?A2: We specialized in CNC Milling Machine ,Vertical Machining Center ,Lathe Machines , Drilling Machine, Tapping Machine and so on.Q3: What's the Payment Terms ?A3: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight.Q4: What's the MOQ?A4: 1setQ5: What's the warranty?A5: One year.
