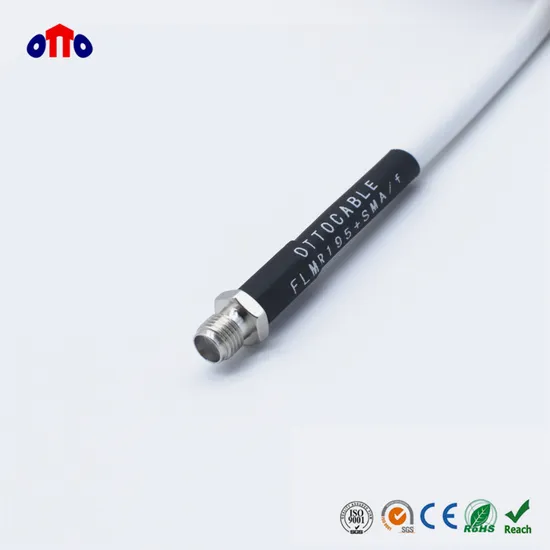

LMR195 Coaxial Cable Assembly with SMA-N Connectors for Antennas

Product Description

LMR195 Coaxial Cable Assembly with SMA-N Connectors for Antennas
Application:
• Mobile Antennas
• Wireless Communication Syestems
• WLL, GPS, WLAN,WiMax
• Cellphone Signal Repeaters
• Signal transmission
Features:
• 50 Ohm
• Low Loss RF Cable
• 0 - 6GHz
• Excellent performance at high frequency
• Drop-in replacement for RG58.
• REACH/RoHS compliant, CE certified.
• OEM/ODM
Assemblies:
• N, TNC, BNC, SMA......
• Customized Cable length / color/ roll size/ packing
• Various colors of Heat shrinkable tube
Construction

Item	Material	Diameter(mm)
Inner Conductor Dielectric First Shield Second Shield Jacket	Bare Copper / Copper Clad Steel Foam PE Bonded Aluminum Foil Tinned Copper Wire Braid PVC/PE/LSZH	0.94 2.79 2.95 3.53 4.95

Electrical Characteristics

Impedance (Ω) Capacitance (pF/m) Velocity of Propagation (%) Return Loss Screening Effectiveness(dB) VSWR Installation Temp(ºC) Operating Temp(ºC)

50±3 83.3 80 ≥20 ≥90 ≤1.2 -25 to +70 -25 to +70

Attenuation (@20ºC)

Frequency(MHz)	Max Attenuation(dB/100m)
150 220 450 900 1500 1800 2000 2500	14.6 17.7 25.5 36.5 47.7 52.5 55.4 62.4

---
