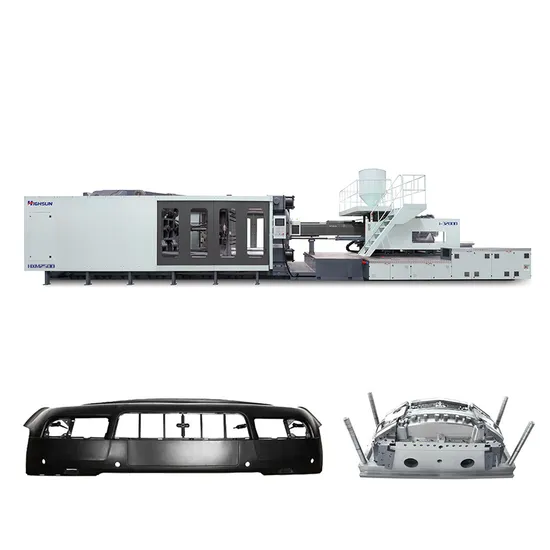

Big Size Long Service Life New Style Servo Energy-Saving Plastic Injection Molding Machine Hxm2500

US$100,000.00-550,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HXM2500
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, SGS, TUV
Energy Saving
Servo Energy Saving
After Sales Service
Engineers Avaiable to Service Machine
Voltage
According to Countries
Showroom Locate
Malaysia,Indonesia,Turkey,Mexico,Uzberkista,Mn
Condition
100% New
Machine Weight
175 Ton
Transport Package
Standard Packing
Specification
19.5*4.00*5.20
Trademark
HIGHSUN
Origin
China
HS Code
847710
Production Capacity
7000sets/Year

Product Description

MODEL: HXM2500
TECHNICAL PARAMETER TABLE A B C
INJECTION UNIT SCREW DIAMETER mm 170 185 200
SCREW L/D RATIO L/D 23 22 21
INJECTION CAPACITY IN THEORY cm3 24059 28493 33300
INJECTION WEIGHT(PS) g 21894 25928 30303
oz 772.2 914.5 1068.8
INJECTION PRESSURE MPa 186 157 134
INJECTION RATE g/s 1424 1686 1970
PLASTICIZING CAPACITY g/s 127 170 220
SCREW SPEED rpm 65
CLAMPING UNIT CLAMPING FORCE KN 25000
MOVING MOULD-PLATE STROKE mm 1900
MAX. MOULD HEIGHT mm 1800
MIN. MOULD HEIGHT mm 800
SPACE BWTWEEN TIE-BARS (W*H) mm 1850*1700
HYDRAULIC EJECTOR FORCE KN 520
HYDRAULIC EJECTOR STROKE mm 450
EJECTOR NUMBER n 33
OTHERS PUMP PRESSURE MPa 17.5
MOTOR POWER KW 47+47+47+47
HEATING CAPACITY KW 170
MACHINE DIMENSION (L*W*H) m 19.50*4.00*5.20
MACHINE WEIGHT t 175
OIL TANK CAPACITY L 3700
