Advanced CNC Metal Processing Equipment for Precision Engineering

Product Description

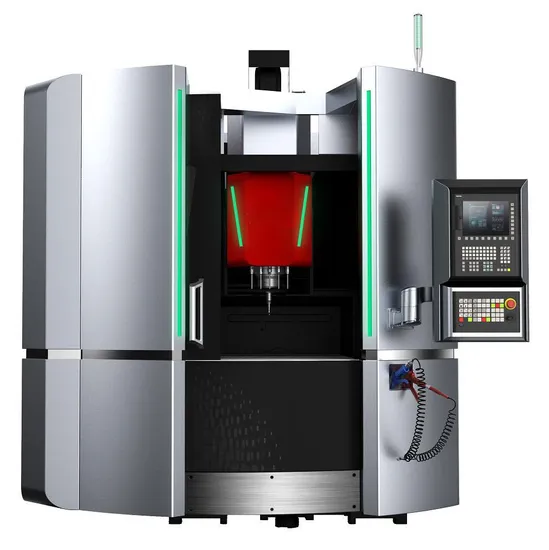

Introducing the pinnacle of metal processing technology: the Advanced Metal Processing High Precision CNC Machine. A marvel of engineering, our 5 Axis CNC Milling Machine is designed to deliver unparalleled precision and efficiency, transforming the landscape of machining.
Product Description

Main parts	Parts Features
X/Y/Z/A/C axis travel	700*420*330mm-±120°*±360°
DD 5-axis table size	Φ 250(Max. piece Φ 350)
Iead screw	Japan NSK ф40-10(Hollow oil-cooled)
Guideway	INA 45 Ball line rail
Cutting feed	20m/min
Rapid feed	30m/min
T-slot size	12mm
XYz axis positioning accuracy and repeatability	0.004/0.002
A-axis positioning accuracy and repeatability	10″/8″
C-axis positioning accuracy and repeatability	6″/5″
A-axis rated torque and maximum torque	131.7/527.8N*M
C-axis rated torque and maximum torque	55.9/251.9N*M
A-axis braking mode and braking torque	Air brake / 300N *M
C-axis braking mode and braking torque	Air brake / 150N *M
Bench up to ground height	940mm
Distance from workbench to spindle end surface	150-480mm
Maximum bench load (average load)	Horizontal 50Kg; Vertical 30Kg
Distance from the spindle center to the front of the fuselage	680mm
Maximum work size	Φ350*280mm
Spindle type	150 Electrospindles
The highest speed of the main shaft	20000rpm
The principal shaft is rated power	20Kw
The main shaft is rated torque	30.7N*M
Spindle cooling	water-cooled
spindle taper	HSK-A63
Maximum capacity of the knife library	24T
Tool specification	A63
Maximum diameter (no adjacent knife)	120mm (160mm)
Tool length	250mm
Knife weight	5Kg
Three-axis motor power	3/3/3Kw
Outline dimensions of the machine tool	2260*3200*2650mm (including rear chip conveyor)
Machine heavy	6500Kg

Anoher Advantages
• Immerse yourself in a world where precision meets efficiency with our state-of-the-art production facilities. Architected to achieve superior performance, our solutions set new industry standards for excellence, propelling your operations to new dimensions of success.
Our cutting-edge portfolio boasts advanced imported machinery, including both horizontal and vertical machining centers. Featuring high-precision CNC boring machines with rotating tables and gantry guideway grinding machines, our equipment is meticulously engineered to maximize workpiece accuracy. This precision not only enhances assembly efficiency but also extends the operational lifespan of our products, ensuring long-lasting excellence.
• State-of-the-Art Detection Techniques
Employing advanced laser technology, we ensure meticulous testing and calibration of positioning accuracy. Adhering strictly to German VDI3411 inspection standards, we execute five rigorous tests per standard, guaranteeing unparalleled precision and reliability.
Each of our machine tools undergoes thorough processing tests before leaving our facilities, consistently exceeding industry standards for processing accuracy. This rigorous testing ensures that your investment delivers extraordinary results.
Product sample
• Enhance your operational efficiency with our pioneering Automated 4-Axis CNC Drilling Milling Center! This state-of-the-art machine seamlessly merges milling, drilling, and tapping functions, establishing new benchmarks in productivity, precision, and performance. Ideal for vertical machining, it transforms your production capabilities.
• Achieve mastery in precision engineering with our CNC Machine, expertly designed to handle a wide variety of materials including aluminum, steel, copper, and non-metal profiles. This machine elevates craftsmanship, ensuring every project is a detailed masterpiece.
• Transform your production potential across diverse industries like 3C electronics, rail transportation, aerospace, and linear module guide rails with our adaptable CNC machining solutions. Leverage cutting-edge technology for unmatched versatility and peak performance, expanding the horizons of possibility.
Packaging & Shipping
•Highly Protective: Our meticulously engineered packaging solutions provide unparalleled protection for the Vertical CNC Drilling Machine Center during transit. Employing state-of-the-art protective strategies, we ensure your product remains immaculate, granting you confidence from dispatch to delivery.
•Structural Stability: Our packaging is designed with exceptional precision to maintain the machine's structural integrity impeccably. Each component is securely enclosed, ensuring that the machine arrives in pristine condition, ready for flawless operation upon opening.
•Environmentally Friendly and Recyclable: Reflecting our commitment to sustainability, we select robust yet environmentally conscious packaging materials. Our fully recyclable solutions offer superior protection while minimizing environmental impact, showcasing our innovative approach to both technology and packaging.
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments with a streamlined process to prioritize your order. A 40% initial deposit secures your purchase, and the remaining 60% balance is due before shipment. This ensures a smooth, efficient transaction and timely delivery.
2. What are your trade terms?
A: Our flexible trade terms include FOB, CFR, and CIF, providing you with the versatility to choose the most convenient and cost-effective option tailored to your specific requirements.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we ensure your order is ready within 30 days. Customized or special machines may require additional time. Place your order according to our schedule for timely and reliable delivery.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set. We offer a comprehensive one-year warranty, providing you with peace of mind and satisfaction.
5. How are the machines packaged?
A: Each machine is meticulously packed in a sturdy wooden case to ensure it arrives in perfect condition, protecting your valuable investment.
6. How can I choose the most suitable machines?
A: Provide us with your specifications, and we will recommend the most suitable model tailored to your precise needs. Alternatively, you can select the exact model yourself.
Alternatively, you can send us your product drawings, allowing us to identify the ideal machine configuration to meet your specific requirements.

---
