Factory Price Overhead Cable Accessories Cable Storage Bracket

Product Details

Product Description

Product Description



Product Usage

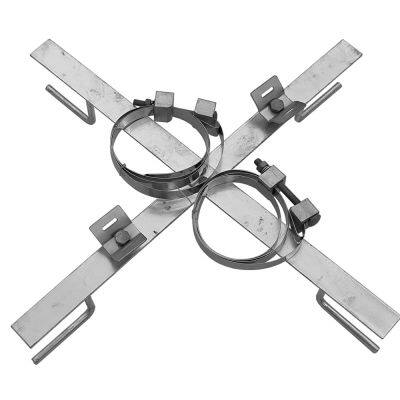

The cable tray is made of Q235 flat iron material, with conventional main materials of 4mm * 40mm and 5mm * 50mm. It is hot-dip galvanized on the surface and is used to place excess optical cables during cable splicing. Generally, a joint box is set up, and each cable tray is equipped with a surplus cable tray.

Installation instructions

1. There are two types of cable trays: inner tray and outer tray.
2. When used for electric poles, the pole diameter needs to be provided.
3. Wrap the electric pole with a steel band clamp and fasten the remaining cable frame to the steel band clamp with bolts. Pay attention to stacking the steel bands to prevent slipping.



Optical cable rest bracket selection table


Product specification	Fixed part length (mm)	Total length (mm)	Weight (kg)	Use
LAYLJ-G	400	700	4	For AD cable pole
LAYLJ-G	400	660	3.8	For AD cable pole
LPYLJ-G	400	700	4	For OP cable pole



Optical cable cable storage assembly selection table


Product specification	Fixed part length (mm)	Total length (mm)	Weight (kg)	Use
LAYLJ-T	400	700	4	For AD cable tower
LPYLJ-T	400	700	4	For OP cable tower



---
