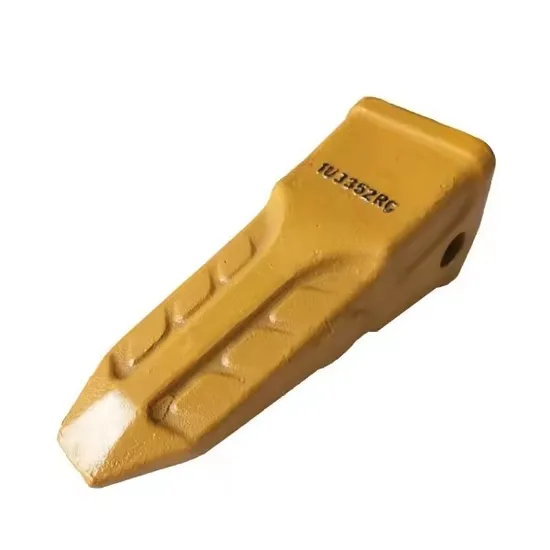

Earthmoving Spare Parts Teeth for Buckets Excavators 1u3352RC Bucket Tooth Point 1u3352

Product Description

Product Description




Mechanical Property

Material	Hardness	V-Norch	Tensile	Elongation	Yeild
T1	47-52HRC	akv>=16J	>=1499Mpa	>=3%	>=1040N/mm2
T2	48-52HRC	akv>=20J	>=1500Mpa	>=4%	>=1100N/mm2
T3	48-52HRC	akv>=20J	>=1550Mpa	>=5%	>=1100N/mm2

Bucket Teeth Catalogue

PART NO.	WEIGHT (KG)	DESCIPTION	FAMILY/MODEL
135-9300/4T2203RP	9	TIP HEAVY DUTY	J300
135-9400/7T3403RP	17	TIP HEAVY DUTY	J400
135-9600	54	TIP HEAVY DUTY	J600
135-9800	94.6	TIP HEAVY DUTY	J800
138-6451/9W1453RP	23	TIP HEAVY DUTY	J460
168-1451	11	TIP HEAVY DUTY	J460
144-1358/4T2353RP	10.3	TIP HEAVY DUTY	J350
144-1358	11	TIP HEAVY DUTY	J350
138-6552/9W1553RP	29	TIP HEAVY DUTY	J550
138-6552	30.5	TIP HEAVY DUTY	J550
1U0257	7.7	BOLT-ON ADAPTER	J250
1U0307	11	BOLT-ON ADAPTER	J300
1U1254	5.3	WELD-ON ADAPTER	J250
1U1304	7.6	WELD-ON ADAPTER	J300
1U1350	9.8	WELD-ON ADAPTER	J350
1U1354	15	WELD-ON ADAPTER	J350
1U1357	17.8	WELD-ON ADAPTER	J350
1U1454	17.3	WELD-ON ADAPTER	J450
1U1857	10	UNIT TOOTH BOLT ON	J250
1U1858	15.1	UNIT TOOTH BOLT ON	J300
1U1859	15.1	UNIT TOOTH BOLT ON	J300
1U1877	12.4	UNIT TOOTH BOLT ON	J300
1U1878	23	UNIT TOOTH BOLT ON	J300
1U1879	23	UNIT TOOTH BOLT ON	J300
1U1888	29.5	UNIT TOOTH BOLT ON	J350
1U1889	29.5	UNIT TOOTH BOLT ON	J350
1U2208	3.8	CORNER ADAPTER LH	J200
1U2209	3.8	CORNER ADAPTER RH	J200
1U3201	1.45	TEETH SHORT	J200
1U3202	1.35	TEETH STANDARD LONG	J200
1U3202P	1.4	TEETH ROCK	J200
1U3202TL/9W8209	1.35	TEETH TIGER	J200
1U3202WTL/135-8208	1.35	TEETH TWIN TIGER	J200
1U3209	1.25	TEETH PENETRATION	J200
1U3251	2.7	TEETH ROCK	J250
1U3252	2.9	TEETH STANDARD LONG	J250
1U3252TL/9W8259	2.7	TEETH TIGER	J250
1U3252WTL/135-8258	3.5	TEETH TWIN TIGER	J250
1U3252RC	3.5	TEETH ROCK CHISEL	J250
1U3301	4	TEETH SHORT	J300
1U3302	4.3	TEETH STANDARD LONG	J300
1U3302	4.7	TEETH STANDARD LONG	J300
1U3302TL/9W8309	4.3	TEETH TIGER	J300
1U3302WTL/135-9308	4.8	TEETH TWIN TIGER	J300
1U3302RC	4.9	TEETH ROCK	J300
1U3302RC-2	4.8	TEETH ROCK	J300
1U3302RCL	4.95	TEETH FISH SCALE	J300
1U3302R/9J4302	4.5	TEETH ROCK	J300
1U3302SYL	5.2	TEETH SYL	J300
1U3351	5.5	TEETH SHORT	J350
1U3352	5.6	TEETH STANDARD LONG	J350
1U3352	5.8	TEETH STANDARD LONG	J350
1U3352	6	TEETH STANDARD LONG	J350
1U3352R/9J4352	6	TEETH ROCK	J350
1U3352TL/9W2359	6	TEETH TIGER	J350
1U3352WTL	7	TEETH TWIN TIGER	J350
1U3352RC	7	TEETH ROCK CHISEL	J350
1U3352RC	8.2	TEETH ROCK	J350
1U3352RCK	6.5	TEETH ROCK	J350
1U3352SYL	7.8	TEETH SYL	J350
1U3452	12.65	TEETH STANDARD LONG	J460
1U3452SYL	11.1	TEETH SYL	J460
1U3452TL/9W8452TL/7T8459	13.5	TEETH TIGER	J460
1U3452C	15	TEETH ROCK TEETH	J460
1U3452RC	13.4	TEETH ROCK	J460
1U3452RC	15	TEETH ROCK	J460
1U3552TL	22.5	TEETH	J550
1U3552RCL	22.7	TEETH FISH SCALE	J550
1U3552WT/9W8552WTL/138-6558	18	TEETH TWIN TIGER	J550
2D5572/6Y5230	1.3	SCARIFIER TEETH
2V7053	3.46	COMPACTOR
3G0169	4	ADAPTER	J250
3G3357	18	BOLT-ON ADAPTER	J350
3G4258	10	CORNER ADAPTER	J250
3G4259	10	CORNER ADAPTER	J250
3G4307/4T4307	12.7	ADAPTER	J350
3G4308	15.5	CORNER ADAPTER	J300
3G4309	15.5	CORNER ADAPTER	J300
3G5307	14	BOLT-ON ADAPTER	J300
3G5358	24.3	CORNER ADAPTER	J350
3G5359	24.3	CORNER ADAPTER	J350
9W1304/3G6304	7.8	WELD-ON ADAPTER	J300
3G6305	7.5	WELD-ON LEFT ADAPTER	J300
3G6306	7.5	WELD-ON RIGHT ADAPTER	J300
3G9307	14	BOLT-ON ADAPTER	J300
3G8308	17	CORNER ADAPTER	J300
3G8309	17	CORNER ADAPTER	J300
3G8319	14.3	END BIT
3G8320	14.3	END BIT
3G8354	9	WELD-ON ADAPTER	J350
3G8354/8J4310	9	WELD-ON ADAPTER	J350
6I6354	9	WELD-ON ADAPTER	J350
3G8355/6I6355	9.1	WELD-ON ADAPTER	J350
3G8356/6I6356	9.1	WELD-ON ADAPTER	J350
4T1204	2.08	WELD-ON ADAPTER	J200
9J4203/4T2203	1.8	TEETH ABRASION	J200
4T2253	3.5	TEETH ABRASION	J250
4T2303	5.3	TEETH ABRASION	J300
4T4307	12.7	BOLT-ON ADAPTER	J300
4T4501/4T5501	25	RIPPER TEETH	D9L,D10,D10N,D11,D11N
4T5503	29.3	RIPPER TEETH	D9L,D10,D10N,D11,D11N
4T5502/4T4502	28	RIPPER TEETH	D9L,D10,D10N,D11,D11N
4T6694	10.2	SEGMENT
4T4702RC	50	TEETH ROCK	J700
4T4704	72	WELD-ON ADAPTER	J700
4K6936	1.6	TEETH	23
5B6251	5.5	RIPPER SHANK
5V4311	9.5	RIPPER SHANK
6I6354	9.2	WELD-ON ADAPTER	J350
6I6354	9	WELD-ON ADAPTER	J350
6I6354	9.3	WELD-ON ADAPTER	J350
6I6404	12.8	WELD-ON ADAPTER	J400
6I6404	13	WELD-ON ADAPTER	J400
6I6405	12.3	WELD-ON ADAPTER	J400
6I6406	12.3	WELD-ON ADAPTER	J400
6I6464/8E6464	20.5	WELD-ON ADAPTER	J460
6I6464	20.3	WELD-ON ADAPTER	J460
6I6464	21	WELD-ON ADAPTER	J460
6I6554/1U1553	34	WELD-ON ADAPTER	J550
6I6554	34	WELD-ON ADAPTER	J550
6I6602	34	TEETH STANDARD LONG	J600
6I6602RC	39	TEETH ROCK	J600
6I6604	54	WELD-ON ADAPTER	J600
6Y0309	5.2	RIPPER TEETH	D4, 941, 951,955, 963,12, 14, 130, 140,143H, 160H
6Y0359/6Y0352	11	RIPPER TEETH	16,973, 977,D5, D6,D7,983,
6Y0469/1U1567	23.5	BOLT-ON MONOBLOCK TEETH	J350
6Y2553	34	TEETH HEAVY DUTY ABRASION	J550
6Y3222	3.4	TEETH STANDARD LONG	J225
6Y3222RC	2.8	TEETH ROCK	J225
6Y3224	3	WELD-ON ADAPTER	J225
6Y3254	3.8	WELD-ON ADAPTER	J250
6Y5230	1.3	SCARIFIER TEETH	12, 14, 112,130, 140
6Y7409	8.8	TEETH PENETRATION	J400
6Y8229	2	TEETH PENETRATION	J225
6Y6335/9W1879/135-8203	3.3	BOLT-ON MONOBLOCK TEETH	J200
7I7609	30	TEETH PENETRATION	J600
7K6908	6.7
7T3401	8.2	TEETH SHORT	J400
7T3402	9	TEETH STANDARD LONG	J400
7T3402	10.5	TEETH STANDARD LONG	J400
7T3409TL/6Y5409	9.5	TEETH TIGER	J400
7T3402WTL/135-9408	10.4	TEETH TWIN TIGER	J400
7T3402RC	9.5	TEETH ROCK CHISEL	J400
7T3402RC	9.88	TEETH ROCK CHISEL	J400
7T3403	13.5	TEETH ABRASION PENETRATION	J400
227-3665	5	SIDE CUTTER	D424 .
227-3666	5	SIDE CUTTER	D424 .
112-2487/096-4747	11.2	SIDE CUTTER	E200/E320
112-2488/096-4748	11.2	SIDE CUTTER	E200/E320
7Y0358	18.9	SIDE CUTTER	E330
7Y0359	18.9	SIDE CUTTER	E330
8E1637	16	UNIT TOOTH BOLT ON	J300
8E4222	3.1	TEETH HEAVY DUTY LONG	J225
8E0464	23.5	ADAPTER	J460
8E4402	11.5	TEETH HEAVY DUTY LONG	J400
8E6464/6I6464	20.6	WELD-ON ADAPTER	J460
8E5308	17.6	CORNER ADAPTER	J300
8E5309	17.6	CORNER ADAPTER	J300
8E5358	23	CORNER ADAPTER	J350
8E5359	23	CORNER ADAPTER	J350
8E8418	76	RIPPER SHANK	D8,D9
8J7525	1.4	WELD-ON ADAPTER	J200
8J7525	1.5	WELD-ON ADAPTER	J200
9F5124	5.4	SCARIFIER SHANK	12, 14, 112,130, 140
9J4207	3.2	BOLT-ON ADAPTER	J200
9J4259	2.5	TEETH PENETRATION	J250
9J4309	3.6	TEETH PENETRATION	J300
9J4359	5.5	TEETH PENETRATION	J350
9J6586	24	RIPPER SHANK-STRAIGHT	D4, 941, 951,955, 963,12, 14,
9J8910/6Y0309	5.2	RIPPER TEETH	D4, 941, 951,955, 963,12, 14,
9J8920/6Y0359	11	RIPPER TEETH PENETRATION LONG	16,973, 977,D5, D6,D7,983,
9J8929	8	WELD-ON ADAPTER	J300
9N4252	4.2	TEETH HEAVY DUTY LONG	J250
9N4253	4.55	TEETH HEAVY DUTY ABRASION	J250
9N4302	5.5	TEETH HEAVY DUTY LONG	J300
9N4303	7.2	TEETH HEAVY DUTY ABRASION	J300
9N4352	8.6	TEETH HEAVY DUTY ABRASION	J350
9N4353	11	TEETH HEAVY DUTY ABRASION	J350
9N4452	17.5	TEETH HEAVY DUTY LONG	J460
9N4453	21.4	TEETH HEAVY DUTY ABRASION	J460
9N4552	26	TEETH HEAVY DUTY LONG	J550
9W2451	13.8	RIPPER TEETH	D8K,D8L,D8N,D9H,D9N
9W2451	15.7	RIPPER TEETH	D8K,D8L,D8N,D9H,D9N
9W2452	17	RIPPER TEETH	D8K,D8L,D8N,D9H,D9N
9W4551	46.5	RIPPER TEETH	D11SS D11DR
9W8451	11.5	TEETH SHORT	J460
9W8452	12.4	TEETH STANDARD LONG	J460
9W8452R/9J4452	11.5	TEETH ROCK	J460
9W8452RC/1U3452RC	15	TEETH ROCK CHISEL	J460
9W8452T/1U3452TL/7T8459	13.5	TEETH TIGER	J460
9W8452WTL/138-6458	15	TEETH TWIN TIGER	J460
9W8459	10	TEETH PENETRATION	J460
9W8551	15.5	TEETH SHORT	J550
9W8552	19.5	TEETH STANDARD LONG	J550
9W8552RC	23	TEETH ROCK	J550
9W8552RCL	22.7	TEETH FISH SCALE	J550
9W8552T/1U3552TL/9W6559	22.5	TEETH TIGER	J550

Company Profile
Ningbo Yinzhou Gonuo Hardware Co.,LTD is a professional stamping parts manufacturer which integrating molds development, mold and product manufacturing.
We provide customers with various types of precision casting parts stamping parts, box sheet metal parts, and large cold parts based on customer's drawing or samples. We support OEM&ODM, like processing methods, materials, surface treatment, package, customer logo and so on.
Now our products are exported to many countries, we win the client's trust through the spirit of honesty and respect.
WORK SHOP

CASTING EQUIPMENT


MACHINING EQUIPMENT


INSPECTION
Packaging & Shipping

FAQ

1. How long is ur delivery time?
Mostly depending on ur QTY. Generally 45 workdays after payment received!
2. What is ur minimum qty of products?
MOQ is 500 piece.
3. What is ur surface treatment?
We can do galvanized, Yellow Zinc Plated, black and HDG and others as request.
4. What is ur material?
We can provide alloy steel, stainless steel, carbon steel, brass and aluminum.
5. Do u provide samples?
Yes! FREE SAMPLE!!!
6. Where is the port of shipment?
Ningbo and Shanghai.
7. What is ur payment term?
30% T/T in advance, 70% against copy of B/L!

---
