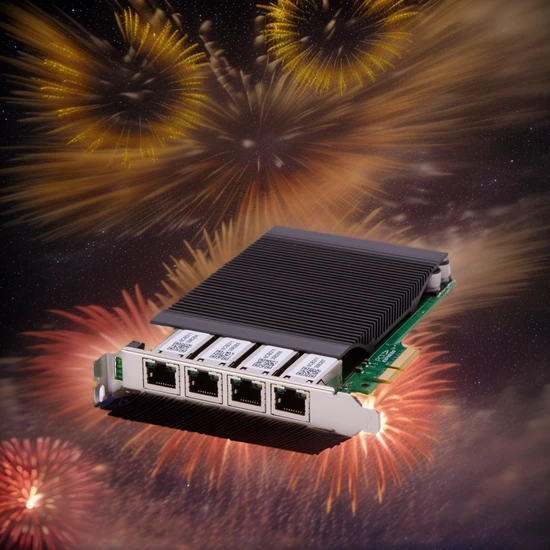

High-Speed Pcie X4 1g Network Card with 4 RJ45 Ports

Product Description

MSS-APOE4 Introducing the PCIe X4 1G Network Card with 4 RJ45 Ports from Shanghai Mss International Trade Co., Ltd. This high-speed network card is perfect for PCs and industrial use, offering stable connectivity and fast data transmission. With its PCIe X4 interface and gigabit ethernet technology, it ensures efficient network expansion and reliable performance. Upgrade your network with this high-performance network card today!
Product Description Introducing the single-port PoE adapter card from Shanghai Mss International Trade Co., Ltd. This powerful adapter offers a range of features designed to enhance your industrial network connectivity.
1. Single-port PoE output power consumption of up to 30W
2. External large 4Pin power supply replenishment interface
3. Adaptive power consumption output for external devices: Class 0, Class 1, Class 2, Class 3
4. Wider RJ45 pitch design for easy cable access
5. Specially designed interface for industrial cable access, ensuring a secure and stable connection
6. Compatible with common cable access
7. Larger heat sink for effective heat dissipation in challenging environments
8. Thickened gold RJ5 connector for secure and reliable connectivity
9. 4 8-pin RJ45 head design to save valuable PCIe slot resources on the motherboard
With these advanced features, our adapter card provides a reliable and efficient solution for your industrial network needs. Experience stable operation and improved connectivity with the single-port PoE adapter card from Shanghai Mss International Trade Co., Ltd.

Features
Controller	Intel I350
Cable medium	Copper cable
Cable Types	Cat 5E and Cat6:1000Base-T up to 100m (POE power supply requirements Cat5) Cat 5E and Cat6:100Base-T up to 100m (POE power supply requirements Cat5)
Bracket	Full-height Bracket
Thermal design power consumption (max)	5W
Single-port PoE output power consumption(max)	30W
Connector	4*1G RJ45
PCIe Bus Type	PCIe v2.1 x4 , compatible with x8 , x16
Rate	10/100/1000Mbps
Operating system support	Windows XP/Vista/7/8/8.1/10/11 Windows Server 2003 R2/2008 R2/ 2012 R2/ 2016 R2/2019 R2/2022 R2 Linux Stable Kernel version 2.6.x/3.x/4.x or later; Linux CentOS/RHEL 6.5 / 7.x or later Ubuntu 14.x/15.x/16.x or later FreeBSD 9 / 10 / 11 or later VMware ESX/ESXi 2.6.x/3.x/4.x/5.x or later

Technical Features
IEEE Standard	IEEE802.3af -2003 PoE standard IEEE802.3at -2009 PoE standard IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE)
PCI-SIG* SR-IOV	Yes
Jumbo frame packet	Yes
VMDq	Yes
WOL	Yes
PXE	Yes
DPDK	Yes
FCoE	No

Environment Features
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-40 to 85 (-40 to 185 )
Storage Humidity	90% non condensing under 35°C

LED Indicators
LED	1000Mbps, Orange bright + Green flashing
	10/100Mbps, Green flashing

Physical Features
PCB Size (mm)	149*104.3*1.6
weight (g)	251g

Order Information
M/N	Description
LRES2004PT-PoE	PCIe x4 1G Quad Port Copper Ethernet PoE Server Adapter
PS: The above details is just for reference,if there is any change,no inform will have.
