Product Description
Product Description

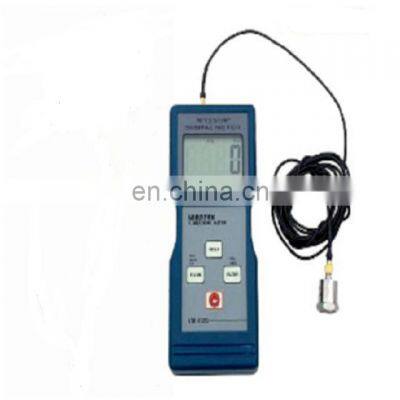

VM6320 Digital vibrometerTaijia VM6320 Digital vibrometer, portable vibration measurement equipment vibration meter vibrometer Product Description - Used for measuring periodic motion, to detect mechanical movement imbalances and misaligned;- Designed for on site measuring various mechanical vibration design for quality control, run time and maintenance of equipment to provide data;- Selection of high performance accelerometer, to achieve accurate, repeatable measurements;- It has the bearing condition measurement function. Technical Information ModelVM-6320 digital vibrometer SpecificationsAcceleration 0.1-200m2/s (10Hz to 1KHz 10Hz to 10KHz )Velocity0.1-200mm/s0. (10Hz to 1KHz)Displacement0.001-2.0mm(10Hz to 1KHz)Accuracy<5%PowerAuto power offHoldMax holdOperating conditions0-+40℃(32℉-104℉),≤90%RHPower supply4x1.5V AA(UM-3)batteryBattery indicatorlow battery indicatorDimensions 160x68x32mmWeight181g(not including battery) Main Features - In accordance with ISO 2372, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines. - Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes. - Individual high quality accelerometer for accurate and repeatable measurements. - Bearing condition monitoring function- LCD digital display. - Lightweight and easy to use - Wide frequency range (10Hz. to 10kHz.) in acceleration mode- Automatic power shut off to conserve power. - Can communicate with PC computer for statistics and printing by the optional cable and the software for RS232C interface. Related products Company InformationDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical. We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc. We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.
>>
