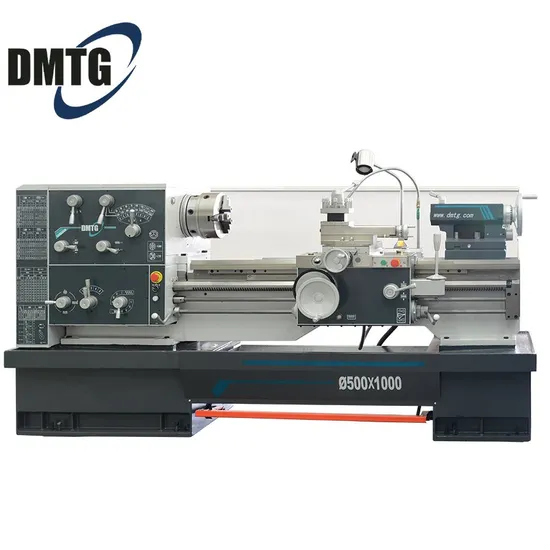

DMTG Conventional Lathe CDS6266B/CDS6266C Engine Metal Lathe Price Manual Lathe Machine
| MAIN PARAMETER | Max swing diameter over bed | mm | φ500 |
| Max swing diameter over cross slide | mm | φ290 |
| Max workpiece length | mm | 1000/1500/2000/3000 |
| Max cutting length | mm | 795/1245/1845/2745 |
| Max turning diameter | mm | φ500 |
| Spindle center height | mm | 250 |
| Bed guideway width | mm | 394 |
| SPINDLE | Spindle motor power | kW | 7.5 |
| Spindle bore | mm | φ82 |
| Chuck size | mm | φ250 |
| Taper of spindle bore | | Metric φ90 1:20 |
| Type of spindle nose | | D8 |
| Spindle speed ranges | r/min | 26-2000 |
| TAILSTOCK | Diameter of tailstock quill | mm | φ75 |
| Travel of tailstock quill | mm | 150 |
| Taper of tailstock quill | | No.5 MT |
| TOOLPOST | Tool shank size (Vertical 4-position) | mm | 25X25 |
| Other | Machine dimension | mm | 2930*1223*1295 |
| Weight | mm | 2170kg |
