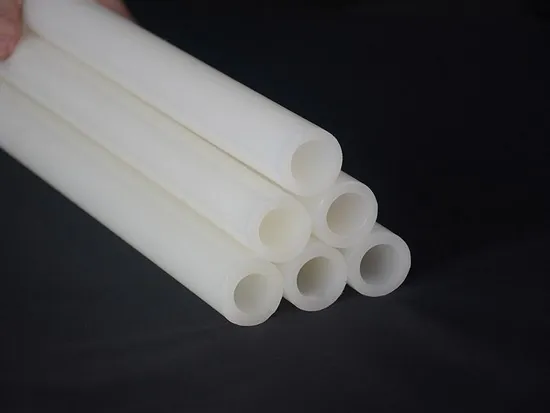

High Performance Extruded High Hardness White PVDF Short Plastic Rod for Electrical

Product Description

Product Description
Polyvinylidene Fluoride (PVDF) is a highly non-reactive and pure thermoplastic, and partially fluorinated. PVDF is a specialty plastic material in the fluoropolymer family. It is used generally in applications requiring the highest purity, strength, and resistance to solvents, acids, bases and heat and low smoke generation during a fire event.

PVDF shows good mechanical, thermal and electrical properties, with excellent chemical resistance. It has good resistance to UV, corrosion and radiation. It also has good wear resistance and sliding properties making it a versatile engineering material.

Key Features
1) Temperature: -30°C up to +140°C (150°C short term).
2) Chemically resistant to most acids, aliphatic and aromatic organic compounds, chlorinated solvents, and alcohols
3) Good electrical insulation properties.
4) Excellent resistance to UV and weathering.
5) High purity and very low water absorption
6) Good resistance to wear
PVDF Rod Size

Size	Thickness	1000 x 2000	1220 x 2440	1500 x3000
		Weight/ per piece (kg)
Extruded sheet	2.0	7.20	10.75	16.30
	3.0	10.80	16.10	24.25
	4.0	14.50	21.50	32.38
	5.0	18.00	27.00	40.46
Extruded/MoldPressed	6.0	21.75	33.00	48.70
	8.0	28.92	44.00	64.68
	10.0	36.30	55.00	80.75
	12.0	43.40	66.50	96.82
	15.0	54.50	82.80	121.00
	20.0	72.50	111.00	166.50
Mold Pressed	25.0	90.48	138.50	209.00
	30.0	107.95	166.50
	35.0	126.40
	40.0	144.30
	50.0	181.26

Package and transportation
Company Factory Certification (ISO9001:2015 & ISO14001:2015)
Company Profile
Hubei Yuntian Group is a group company and it was established in 2008 in Wuhan. It is an expert in the supply of fluoro resin in the whole industry chain integrating scientific research, development, production and sales. Feitengya takes high-end fluoro materials (PVDF, FEP, PFA, ETFE, PTFE, PCTFE) as the core and extends to the entire industrial chain such as lithium battery new energy, photovoltaic new energy, environmental protection, 5G industry, coating field, wire and cable, pharmaceutical fine chemicals, aerospace, and automobile fields.
Established an excellent long-term strategic cooperative relationship with many well-known brands, college laboratories, research and development institutions, and production bases around the world, and built a huge production capacity system. The company adheres to the customer-centric and is committed to continuously creating value for customers, perceived responsibility, high-quality returns, win-win cooperation!

---
