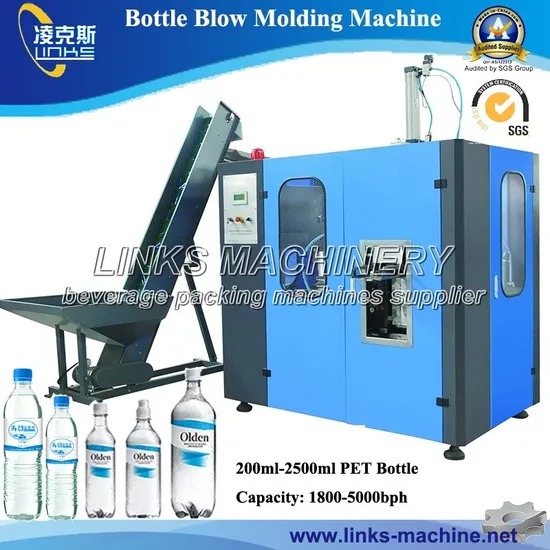

Automatic Blow Bottle Molding Machine

Product Description

Product Description

Blow blttle moulding machine
Automatic bottle blowing molding machine is suitable for producing PET plastic contains and bottles in all shapes. It is widely used to produce water bottles, carbonated bottles, oil bottles and etc.
Stable performance with advanced PLC, and operate the whole machine with human-machine interface touch screen, which make the operation and adjustment easy.
Heating temperature and blowing time etc technology parameters are corresponding set according to customer's different preform and bottle shape.
Equip with automatic preform unscrambler and preform elevator.
Low cost, high efficiency, easy maintenance, with automatic technological process.

Main Parameter:
Model	LK-1500
Container	Product material	PET
	Volume	0.1L-2L
	Theoretical output	1200-1500PCS/H
	Preform length	15mm-350mm
	Preform inner diameter	φ5mm-38mm
Moulding	Max.mould plate Dimenstion(L x W)	350x380mm
	Max.mould thickness	180mm
	Clamping force	45KN
	Mould opening stroke	160mm
Machine size and weight	Main machine (L x W x H)	160x60x161cm
	Main machine weight	500Kg
	Heater (L x W x H)	187x63x145cm
	Heater weight	250Kg
	Power	17.5kw

No	Name	Brand
1	Assembly cylinder	Airtac
2	Stretching cylinder	Airtac
3	Sealing cylinder	Airtac
4	Computer controller	XINGJIE
5	Touch screen	XINGJIE
6	Motor	XINGXING
7	lead rail	ABBA
8	Oil-water separator	Airtac
9	High pressure air tank	DAFENG
10	Low pressure air tank	LK
11	Blowing valve	LK

FAQ
1) Can your factory provide the whole plant from A to Z?
A: Yes, we can provide the complete plant, from bottling making plant, water purification plant, to filling packing plant.
2) Are all machinery your factory made?
A: Our factory make the water purification and filling packing plants. We do not make the bottle making machinery,
we have good quality bottle making machinery partner, and we provide to customer same long warranty time and good after service.

3) How can I know the machinery quality before I order?
A: Frist, we will invite you visiting our factory to check the machines quality, and show the machines running for you in our factory.
4)What certificates you can provide?
A: Our factory provide the CE, SGS, ISO, and accroding to some countries, we also can provide the Pvoc, Coc, Soncap...ect
5)Can your factory make the bottle drawing, workshop layout, and labels for us?
A: We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge.
(Workshop need customer to provide the size of factory)
6)Installation and Training Time
A: We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work

---
