CE Certificated Ultrasonic Quilting Machine for Apparel Lining

Product Description

CE certificated Ultrasonic quilting machine for apparel lining
Model: MS-2300

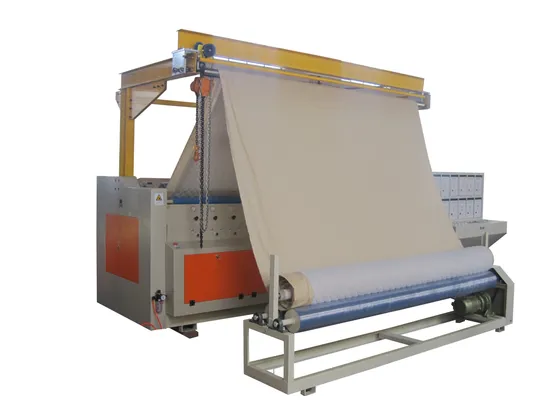

1. Machine pictures:
2. Technical specifications:

Good Description:	Ultrasonic quilting machine
Model:	MS-2300
Voltage Supply:	380V±5V 50Hz (60Hz)
Installed Power:	15 KW
Ultrasonic Frequency:	20KHz, 15KHz available
Working Speed:	0-13m/min, adjustable depending on quilting thickness.
Quilting Work Width:	2300mm
Pattern Roller Sizes:	2330MMxØ(136-175)MM
Materials Suitable:	polyester, nylon, polyester wadding, and non-woven fabrics.
Usages:	Ultrasonic non-needle & non-thread quilting for bedding cloth, mattress material, garment lining, non-woven lamination and so on.
Packing Volume:	About 18.80 M3
Gross Weight:	About 4230 KGS

3. Basic Equipment:
1) This machine adopts the latest ultrasonic control cabinet with stable and strong power, which is suitable for long operation. There is computer core plate in it; The multi-line ultrasonic protection system guarantees stable operation of mainframe.
2) Structure of whole machine: (1). Embossing compound mainframe; (2). Ultrasonic control cabinet; (3). Finished products rewinding machine; (4). Bracket for putting materials.
4. Characteristic:
1) Without needlework that omits the bother of replacing line; The product is beautiful;
2) It has better outlook that is suitable for times.
3) It can replace pattern at random according to request.
4) It has high stitching capacity with high efficiency.
5. Applied Example:
Producing kinds of fiber textile, artificial leather, spraying rubber cotton, non-woven fabrics or the compound of needle-punched cotton; It can design pattern at random; The lining production of costume, bedspread, pillow, sofa and the production of inner decoration.

---
