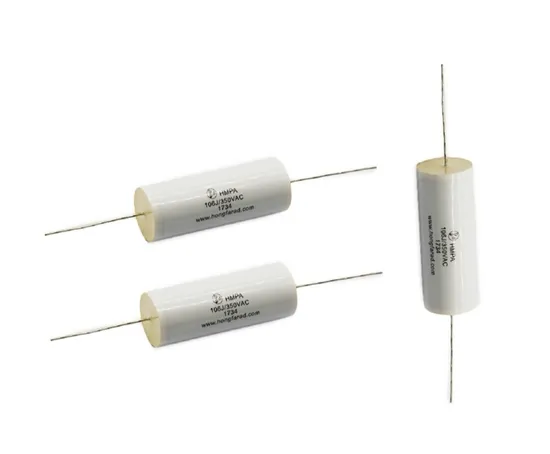

106K 350V, Audio Capacitor, MPa Cbb20 Metallized Polypropylene Film Capacitor

Product Description

106K 350V, Audio Capacitor, MPa Cbb20 Metallized Polypropylene Film Capacitor Product Description Features
1. Metallized polypropylene film, non-inductive type, axial
2. Excellent self-healing property
3. Wrapped with polyester adhesive tape and ends filled with flame retardant epoxy resin

Typical Applications
1. Temperature compensation circuits.
2. Timing, oscillator circuits.
3. Power factor correction and coupling capacitor in SMPS applications.
Specifications

Reference Standard:	GB/T 10190 (IEC 60384-16)
Climatic Category :	40/085/21
Rated Temperature:	85ºC
Rated Voltage:	100V,250V,400V,630V,1250V
Capacitance Range:	0.0010μF~15μF
Capacitance Tolerance:	±5%(J),±10%(K),±20%(M)
Voltage Proof:	1.6UR(5S)
Dissipation Factor:	≤10*10-4(1KHz,20ºC)
Insulation Resistance:	≥100 000MΩ, CN≤0.33μF ≥30 000S, CN>0.33μF (20ºC,100V,1min)

Maximum Pulse Rise Time(dV/dt): If the working voltage (U) is lower than the rated voltage (UR), the capacitor can be worked at a higher dV/dt.In this case, the maximum allowed dV/dt is obtain by multiplying the right value with UR/U.	UR(V)	dV/dt(V/μS)
		L=12.0	L=14.5	L=20.0	L=27.5	L=33.0	L=41.5	L=56.5
	100/160	150	110	80	60	50	35	20
	250	300	220	150	110	90	60	30
	400	460	330	250	180	120	80	45
	630	600	440	300	220	150	100	60
	1000	800	550	400	300	200	150	80
	1250	1000	750	580	400	300	200	100

Outline Drawing
Dimensions(mm)

Rated Cap.	100/250VDC			Rated Cap.	400VDC		Rated Cap.	630VDC			Rated Cap.	1250VDC
	OD	L			OD	L		OD		L		OD	L
	max	max			max	max		max		max		max	max
0.010uF	5.5	14.0		0.010uF	5.5	14.0	0.010uF	5.5		14.0	0.010uF	6.5	14.0
0.015uF	5.5	14.0		0.015uF	6.0	14.0	0.015uF	6.0		14.0	0.015uF	7.0	14.0
0.022uF	6.0	14.0		0.022uF	7.0	14.0	0.022uF	7.0		14.0	0.022uF	8.0	14.0
0.027uF	6.0	14.0		0.027uF	7.0	14.0	0.027uF	7.0		14.0	0.027uF	8.5	14.0
0.033uF	6.0	14.0		0.033uF	7.0	14.0	0.033uF	7.5		14.0	0.033uF	8.0	20.0
0.039uF	6.0	14.0		0.039uF	7.0	14.0	0.039uF	7.5		14.0	0.039uF	8.5	20.0
0.047uF	6.0	14.0		0.047uF	7.0	14.0	0.047uF	8.0		14.0	0.047uF	9.0	20.0
0.068uF	6.5	14.0		0.068uF	7.5	14.0	0.068uF	8.0		20.0	0.068uF	10.5	20.0
0.082uF	6.5	14.0		0.082uF	8.0	14.0	0.082uF	8.5		20.0	0.082uF	11.0	20.0
0.10uF	7.0	14.0		0.10uF	8.0	14.0	0.10uF	9.0		20.0	0.10uF	10.0	26.0
0.15uF	8.0	14.0		0.15uF	8.0	20.0	0.15uF	10.0		20.0	0.15uF	12.0	26.0
0.22uF	7.5	20.0		0.22uF	8.5	20.0	0.22uF	10.0		26.0	0.22uF	14.0	26.0
0.27uF	8.0	20.0		0.27uF	9.0	20.0	0.27uF	11.0		26.0	0.27uF	13.5	32.0
0.33uF	8.5	20.0		0.33uF	10.0	20.0	0.33uF	11.5		26.0	0.33uF	14.5	32.0
0.39uF	8.0	26.0		0.39uF	10.5	20.0	0.39uF	12.5		26.0	0.39uF	15.5	32.0
0.47uF	8.5	26.0		0.47uF	10.5	26.0	0.47uF	13.5		26.0	0.47uF	17.0	32.0
0.68uF	9.5	26.0		0.68uF	12.5	26.0	0.68uF	14.0		32.0	0.68uF	20.0	32.0
0.82uF	10.0	26.0		0.82uF	13.0	26.0	0.82uF	15.0		32.0	0.82uF	20.0	37.0
1.0uF	9.5	32.0		1.0uF	13.5	26.0	1.0uF	16.5		32.0	1.0uF	22.0	37.0
1.2uF	10.0	32.0		1.2uF	14.0	26.0	1.2uF	18.0		32.0	1.2uF	24.0	37.0
1.5uF	11.0	32.0		1.5uF	15.0	32.0	1.5uF	20.0		32.0	1.5uF	21.0	46.0
1.8uF	12.0	32.0		1.8uF	16.0	32.0	1.8uF	21.5		32.0	1.8uF	25.0	46.0
2.2uF	13.0	32.0		2.2uF	17.0	32.0	2.2uF	21.5		37.0	2.2uF	27.5	46.0
2.5uF	13.5	32.0		2.5uF	17.5	32.0	2.5uF	23.0		37.0
2.7uF	14.0	32.0		2.7uF	18.0	32.0	2.7uF	24.0		37.0
3.3uF	15.0	32.0		3.3uF	19.0	32.0	3.3uF	22.5		46.0
3.6uF	15.0	36.0		3.6uF	20.0	32.0	3.6uF	23.5		46.0
3.9uF	15.5	36.0		3.9uF	19.0	37.0	3.9uF	24.5		46.0
4.7uF	17.0	36.0		4.7uF	20.5	37.0	4.7uF	26.5		46.0
6.8uF	18.0	36.0		5.6uF	22.5	37.0
8.2uF	17.0	46.0		6.8uF	23.0	37.0
10.0uF	18.5	46.0		8.2uF	23.0	46.0
15.0uF	20.5	46.0		10.0uF	25.0	46.0
For inquiry of items out of above range or with special dimensions, please do not hesitate to contact with us for availability. For inquiry of items out of above range or with special dimensions, please do not hesitate to contact with us for availability.
