Pg-120t Cryogenic Deflashing System for Efficient Rubber Deflashing and Deburring

Product Description

PG-120T Cryogenic Deflashing & Deburring Machine (120 Liter) for Deflashing
Product Description PROCESSING PRINCIPLE
As temperature decreases, rubber/plastic parts undergo hardening, brittleness, and crystallization, gradually losing flexibility. When subjected to brittle temperatures, they can easily fracture under external force. The flash on molded products, being thinner than the finished product, turns brittle quicker. The Cryogenic deflashing machine employs this principle by operating within the time frame where the flash is brittle while the product retains flexibility. High-speed projected special plastic media then targets these brittle flashes, effectively clearing them out without damaging the product.
Product Feature
FUNCTIONS
Our machine is ideal for removing flashes from small rubber and plastic parts like O-rings, gaskets, and other molded components.
Utilizing advanced cryogenic processing technology, the machine first freezes the flashes, then eradicates them using high-speed projection media (Polycarbonate blast), significantly enhancing the surface quality of molded rubber and plastic parts.
Product Specification / Models
APPLICATIONS
A. O-rings, irregular rubber parts of varying materials and sizes.
B. Micro electronic product parts
C. Precision elastomeric parts
D. Precision injection moulded plastic parts
E. R & D part runs
F. Die casting products such as zinc aluminum and magnesium alloy Our Advantages FEATURES
High efficiency: Capable of replacing approximately 60-80 workers for flash removal.
High precision: Effectively removes small and hardened flashes that handworkers cannot, improving product precision.
Low cost: Presents a cost-effective alternative to manual processing.
SPECIFICATIONS

TECHNICAL INFORMATION
MODE	PG-120T

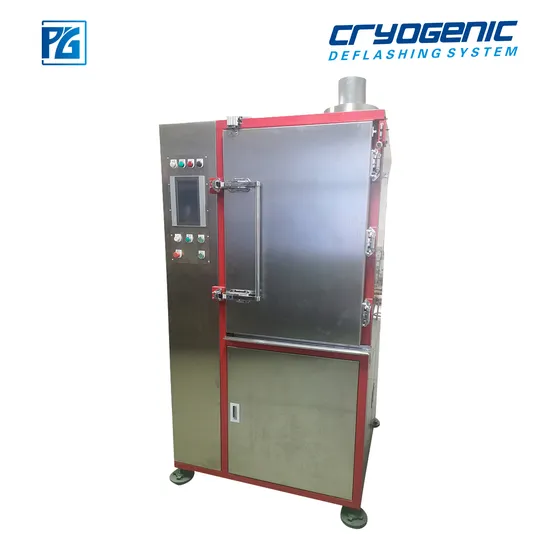

MACHINE PHOTO
SIZE(L*W*H)	1200*1250*2200MM
WEIGHT	1000KG
POWER	Ac380v 50Hz
ELECTRICTY	8Kw*3Ph
TEMPERATURE	-130 - +50ºC
PRESSURE	0.5-0.7Mpa
BARRAEL CAPACITY	100L or 120L
EFFECTIVE CAPACITY	40L`
WHEEL SPEED	3000rpm - 7000rpm
COOLING MEDIA	Liquid Nitrogen
OPETATION MODE	Touch Screen
FRAME	SUS304
WHEEL DIAMETER	AL φ350mm
BLASTING SPEED	143.3m/s

OPERATION PROCESS FEATURES
High efficiency: Capable of replacing approximately 60-80 workers for flash removal.
High precision: Effectively removes small and hardened flashes that handworkers cannot, improving product precision.
Low cost: Presents a cost-effective alternative to manual processing. Installation Instructions MACHINE PICTURES
OUR FACTORY AND WORKSHOP
WORKSHOP Successful Installations
INSTALLATIONS IN POLAND AND USA.
