Limestone Crusher for Road Building (PF-1315)

Product Description

PF Series Impact Crusher: Metal to Rock Crusing TechnologyCubical Shape Stone Aggregate as per International Standard

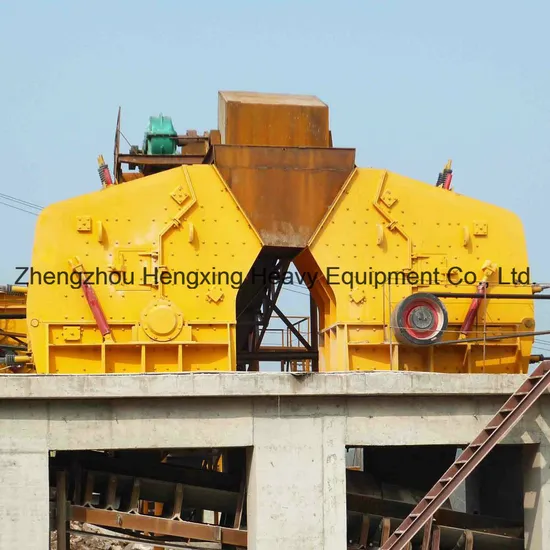

PF Series Impact Crusher/limestone impact crusher:
The pf impact crusheris designed of three crushing cavity, which is applied to crush high quality stone aggregate material with cubical shape. They has a high ratio of reduction, direct control of product gradation and excellent cubical product shape. Our impact crusher is available in different models with capacity from 10-350TPH.
PF Impact Crusher Components:
The inner part, touching the material to be crushed, is protected by means of a special antiwear steel plates, interchangeable, which may be fixed & dismantled very easily. Side windows with a manual opening operated for inspection of the interior of machine. Impact bars of the special antiwear alloy steel, which can be replaced very easily. Impact anvils, also made of special antiwear steel, protected by exchangeable thick bars made of special steel as well.
PF limestone Impact crusher features: 1. Metal to Rock Crusing Technology2. Cubical Shape Stone Aggregate as per International Standards for Road & Building works3. Very useful to Vast production with quality discharge
4. Very easy for Maintance & Replacement of wear & Tear parts5. Minimum Production cost due to low cost of wear & tear parts.
PF Limestone crusher main models :

Model Specification (mm) Feeding size(mm) Max feed size(mm) Capacity (t/h) Motor power(kw) Weight(kg) PF-0607 644*740 320*770 100 10-20 30 10216 PF-0807 850*700 400*730 300 15-30 30-45 11138 PF-1008 1000*800 400*830 300 30-50 37-55 12206 PF-1010 1010*1050 400*1080 350 50-80 55-75 13138 PF-1210 1250*1050 400*1080 350 70-120 110-132 15200 PF-1212 1250*1250 400*1300 350 100-150 132-160 17025 PF-1214 1250*1400 400*1430 400 130-180 160-200 19015 PF-1315 1320*1500 860*1520 500 160-250 180-260 24600 PF-1320 1320*2000 860*2030 500 300-350 300-375 29800 PF-1520 1520*2000 980*2980 700 400-500 400-480 38600

---
