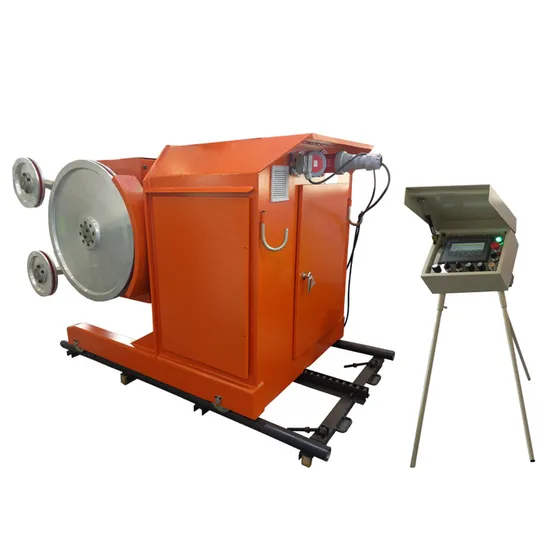

55kw-6p Stable Quality Dimond Wire Saw Machine for Marble Quarry

Product Description

Description of Diamond Wire Saw Machine Type: Stone cutting machine
Main motor: 55kw Flywheel's diameter: 800mm
Guide Pulley's diameter: 2*380mm
Wire speed: 0-40 m/s
Walking motor: 1.5kw
Waling speed: 0-30 m/h
Adjustment distance: 450mm
Rotation angle: 360°
Max length of wire saw: 60m
Net weight: 2600kg
Product Parameter

Model	55KW-6P	55KW-8P	PM 60KW	PM 70KW	75KW-6P
Gross power of machine(KW)	59KW	59KW	64KW	74KW	79KW
Power of main motor(KW)	55KW	55KW	60KW	70KW	75KW
Wire saw speed(M/S)	0-40	0-33	0-40	0-40	0-40
Length of wire(M)	20-120	20-120	20-120	20-150	20-150
Feeding power(KW)	1.5KW	1.5KW	1.5KW	1.5KW	1.5KW
Sideways range(mm)	560	560	560	560	560
Rotation angle	360°	360°	360°	360°	360°
Walking speed of machine(m/h)	0-112	0-112	0-112	0-112	0-112
Length of rail(m)	2m*3+1m	2m*3+1m	2m*3+1m	2m*3+1m	2m*3+1m
Working temperature range(ºC)	-15ºC~ +40ºC	-15ºC~ +40ºC	-15ºC~ +40ºC	-15ºC~ +40ºC	-15ºC~ +40ºC
Power(AC V/HZ)	AC330V~420V, 50/60Hz
Weight(T)	2.8T	2.8T	2.6T	2.6T	3.2T

Main Advantage All electrical accessories of the equipment (such as contactors, intermediate relays, air switches, etc.) are imported from France Schneider and Japan Omron. The operating desk panel selection switch uses the ABB products imported by Switzerland and strong dustproof. The speed control potentiometer on the console uses Japanese imported multi-ring potentiometers, which has the characteristics of high control system, high stability, low failure rate. The machine does not require the phase of the power supply, and there is no need to identify and exchange the power phase so that the mine workers operate and improve work efficiency. Both movement and rotation angles (360 °) of the head are electrically driven and the photoelectric proximity switch is installed, and it works fine in a harsh environment of moisture and dust. Machine head lifting and rotation can be controlled by the work desk, and the staff can remotely operate the machine. Automatic refueling and refueling ports are installed in the main gear and screw active parts of the equipment, which makes the equipment maintenance easier. All the control switches of our wire saw machine are 24V volt human safety voltage, which can effectively protect the safe operation of workers; Our wire saw machine has a derailive alarm design, and the equipment is automatically stopped when the equipment is complete during night and unmanned. The main motor adds a bearing refueling column to improve the motor working efficiency and increase the service life of the motor bearing. The equipment control cabinet has a fully sealed constant temperature control cabinet of our company's invention patent, and the door frame adds a dust-proof seal strip to avoid dust from entering the machine The console control cable is a special cable customized by our company according to the special environment of the mine. This cable has strong tensile resistance, high and low temperature resistance, oil resistance, acid and alkali resistance. The protection levels of all motors are IP55, the button switch and the electric control box are IP65, and the whole machine protection level is IP55. Application
Granite and Marble Quarry

---
