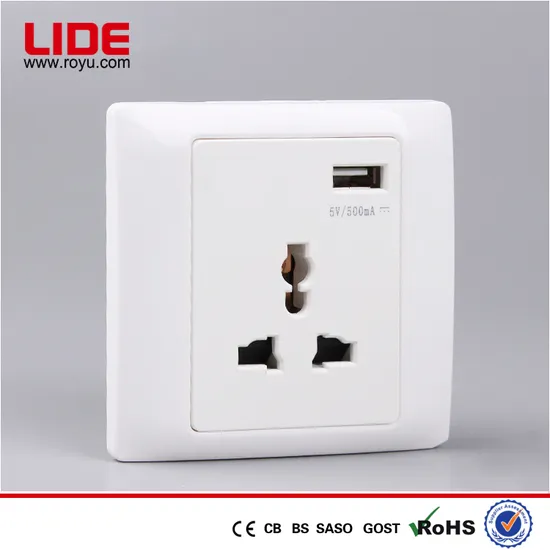

Multi Function Socket with USB Charge, Micro USB Power Socket

US$0.50 1,000 Pieces (MOQ)

Basic Info.

Model NO.

Y-MFUSB

Certification

Ce, ISO9001, CCC

Color

White

Customized

Non-Customized

Condition

New

All Copper, Silver Contact Inside

PC Material Cover to Ensure High Quality

16A for Switch, 10A for Socket

OEM Order Acceptable

Protection

Durable

Feature

Inflaming Retarding

Wiring

Screw or Screwless

Principle

Resistive

Application

Home Appliance

Type

Normal Open

Number of Switch

Multi Control Switch

Structure

Power Built-in Type

Usage

Disconnector, Control Switch, Control Button

Kind

Single-Pole on-off Switch

Contact Type

Type C Contact

Detection Method

Reflection Type

Brand

Lide

Transport Package

1PCS/Bag, 10PCS/Inner Box 120PCS/Master Carton

Specification

6A 250V

Trademark

LIDE

Origin

Wenzhou China

HS Code

85365000

Production Capacity

10000000PCS/Year

Product Description

Multi Function Socket with USB Charge,micro usb power socket
Product Characteristic
The switch contacts are made of high quality silver alloy material,which have a good performance against electric arc and melt weld.The on-off operations exceed 40000 times.
The socket are made of phosphor bronze, which have the character of good electrical conductivity and lasting elasticity.

Outline size:	80x80, 86x86mm
Installation size:	60
Material:	PC POM PA66
Copper:	QSn5.6-0.1 H62 Hpb59

Switch Specification

Lifetime	≥40000
Heat-resistant	100 C / 1h
Insulation Resistance	≥5M Ω
Damp Resistance	48h > 5M Ω
Temperature Raise	≤ 45K
Earthing Provision	≤0.05M Ω

Socket Specification

Lifetime	≥5000
Heat-resistant	100 C / 1h
Insulation Resistance	≥5M Ω
Damp Resistance	48h > 5M Ω
Temperature Raise	≤ 45K
Earthing Provision	≤0.05M Ω
Electric Strength	2000 V ~1 min

About us
Company name: Zhejiang Lide Electric Co.,Ltd
Founding Year: 1997
Qty of employee: 800 employees
Production Capacity: 6000000pcs month
With 46 set injection machines,part of them with Robert.Operate fully automatically. 25
pcs fully automatically assembly line.
Factory In Wenzhou
4000sq meter production Area
7000 sq.meter storage Area
Facotry in Qidong
52000sq. meter land Area
30000sq.meter Building Area
Main products: Electrical equipments. Specilizes in Wall switch and socket,circuit breaker, exhaust fan,mould
Qualifications of Quality: CE CB BS SASO SAA ISO9001
