Hydro Extractor for Textile Jet Dyeing Machine

Product Description

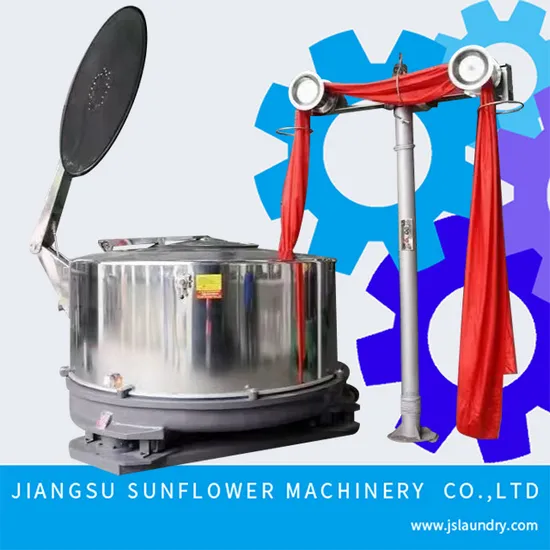

Hydro extractor for Textile Jet Dyeing Machine
The manufacture of TL series of industrial dewatering machine, Hydro Extractor, Yarn Hydro Extractor, Dewatering Machine Dehydrator, Yarn Fabric Hydro Extractor, Yarn Package Hydro Extractor, Automatic Hydro Extractor for Yarn Package, Hydro Extractor For Yarn Dyeing adopts frequency control, dedicated direct-driven motor and super-accurate balancing technology.
The machine enjoys a compact structure, large capacity, low energy consumption, high degree of automation and other characteristics. They are designed with improved timing, earthquake-proof and safety control system.
The machines can be used by all textile industries for starching, bleaching, printing, dyeing and washing.
Specification A : Rubber Belt Driven Type Hydro Extractor Machine

model	motor power	drum dimension	overall dimension(mm)	weight (KG)
TL500 (50kg)	1.5KW	Φ 500	Φ 950*600	300
TL600 (60kg )	2.2KW	Φ 600	Φ 1220*700	500
TL800 (90kg)	4KW	Φ 800	Φ 1720*840	800
TL1000(120kg)	5.5KW	Φ 1000	Φ 1830*840	1400
TL1200 (210kg)	7.5KW	Φ 1200	Φ 2100*1050	1800
TL1500(350kg)	8KW	Φ 1500	Φ 2550*1400	2100
TL1800(650kg)	12KW	Φ 1800	Φ 2700*1560	2300

Specification B : Motor Directly Driven Type Hydro Extractor With Invert Controller

MODEL	MOTOR POWER	Invent Power	DRUM DIMENSION mm	CAPACITY kg	OVER ALL SIZE mm	NET WEIGHT kg
SME301-1000	5.5kw	5.5kw	1000mm*450	200	1400*850	1500
SME301-1200	7.5	7.5 kw	Ф1200×550	300	Ф1800×900	2200
SME301-1500	10	11kw	Ф1500×680	550	2550×1950×2400	2800
SME301-1800	12	15kw	Ф1800×760	900	3100×2450×2800	3400
SME-2000	18.5KW	18.5KW	Ф2000*900	1100	3600*2970*1500	4000

TL series Specially designed hydro extractor for packages meets the always major needs in yarn package dye houses.The driving motor is controlled by inverter with its separative factors adjustable and braking adaptable according to the load.All mechanical braking system are eliminated and therefore excluding eventual maintenance works.
The machine is characterized by the double and automatic interchangeable material carriers for packages which is controlled by advanced PLC controller and imposes a constant and regular production rate according to the type of yarn. While one material carrier for packages is inside the hydro extractor, a second material carrier permits an operator to carry out, in an easy way, all the unloading and loading of packages, thus preparing the machine for a successive production cycle.
The machine lifting and whirligig system adopts the hydraulic control for automatic orientation with precise safety.
The rotating basket is equipped with housings for the accommodation of packages during hydro extraction while the spindles of the package carrier are adopted according the needs of the client. And the speed of hydro extractor can be adjusted. Thus assure a mild treatment to the yarn and avoids the deformation of packages further to breakage of the internal tubes.
The inner basket and the body of the machine are constructed in high quality stainless steel for long serve time.
Hydro extractor for Textile Jet Dyeing Machine
Why choose us? 1.We are the factory of laundry equipment,we own a professional team which is skillful on laundry washing machines.2.Our main products are Washer Extractor(15KG to 150KG),Tumble Dryer(15KG to 120KG),Ironing Machine,Folder and Drying Cleaning Machine,Ironing table which are used in industry washing shop,laundry shop for commercial,school etc.3.All the sales are online 24 hours,because it is easy to help every customer answer the question4.We have agent in the world,if you want to be the next one,do not hesitate and looking forward to your inquiry.5 On Line Video Instructure to help with installation of the machine will be offred
Service System
Pre-Sale Service
Before the order is confirmed, we will provide free laundry layout and all the consultation about the product.

Sale Service
1). In-depth Design
When the order is confirmed, we will communicate with the professional staff from the buyer's part and discuss the indepth drawing design. Besides, we will provide the whole laundry factory layout design for free. The design scheme will be including equipment installation drawing about foundation, water inlet, drainage, air input and output, compressed air and electricity.

2). Installation
All the machines are well tested before we delivery the machines to the operator
When the equipment arrive to the buyer, we will send our technical staffs to provide field installation guidance and any other necessary help to ensure proper and standard installation.

3). Testing
After installation, our staff will help our customer to test the machine and check all the technical index, function, specification of the machine. Also we will comprehensively eliminate all the possible human-caused damage or troubles during installation to make sure the machine will operate in its best condition.

4). Operation Training
Before the machine is put into use, we will provide operation training to ensure the operators from the buyer's part can work independently. The training includes proper operation, safe startup, smooth operation, proper washing, linen check and categorization and machine maintenance. Also we will help operators to learn the right way to save water, energy and emergent stop operation.

.
After-Sale Service
1) Full set of Installation and Operation Manual will be sent together with the machines ,and we are also able to offer online instructure
Operation Video will also be sent together with the machines
2) If you need we are able to send engineer to the work site to help you to train the operator and also to instruct the installation
Please feel free to contact us Contact Person :Ms Sun
For more useful information,please don't hesitate to contact us.We are looking forward to build a long relationship with you!
