Zoomlion Concrete Pump Truck 56m Zlj5441thbkf 56X-6rz Concrete Pumps for Sale

Product Description

product title

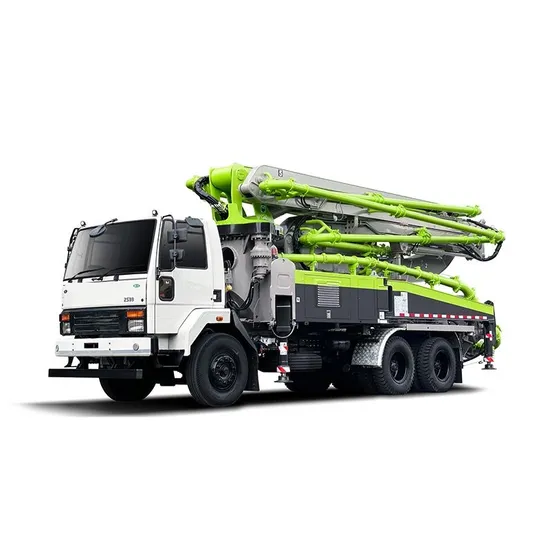

Zoomlion ZLJ5441THBKF 56X-6RZ Siqiao 56m Sinotruk Shandeka Guoliu Pump Truck Product Description
• Compact in design, 56m pump mounted on 4-axle truck, total weight is within the limit of truck load.• Efficient pump unit: consist of 2 Rexroth 180 main pumps, which generates 90 bar pressure on concrete with smooth flow of 180m3/h.• Agile placing boom with 6 arms gives a wide work range.• Controller is designed for heavy duty use, with a monitor, it monitors the pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice.• Rich in configurations and high quality components.

Energy saving and environmental protection: the whole vehicle size is optimized and designed to reduce the body weight and energy consumption. Meanwhile, advanced emission control technology is adopted to meet the emission standards.
Flexible and diversified: with 191° jacking folding arm, it can be rotated 360°without dead angle, adapting to the needs of different working environments.

Easy to operate: equipped with advanced hydraulic control system and intelligent electric control system, it is easy to operate and can precisely control the pumping process.
Comfortable and safe: the pump truck cab is reasonably laid out with a wide field of vision, equipped with air conditioning and adjustable seats, providing good driving comfort and safety.
Product Parameters

Main performance parameters	Unit	Value
Maximum theoretical conveying capacity	m3/h	180
Maximum outlet pressure of concrete	MPa	11.3
Rated working pressure	MPa	42
Pumping frequency	min-1	26
Concrete cylinder borexTravel	mm	Φ260x 2100
Structural form	/	59X-6RZ
Maximum cloth(Height/Radius/Depth)	m	56/51/40.47
Angle of rotation	°	±270°
Outrigger span(FrontxAfterxLongitudinal)	mm	9590*12850*10720
Product type spectrum
Product model	Chassis brand	Emission standards
ZLJ5441THBKF 56X-6RZ	Zhongqi Shandeka	China VI
ZLJ5440THBJF 56X-6RZ	Liberation	China VI
ZLJ5440THBBF 56X-6RZ	Run quickly/Benz	China VI
