Really Suggested Lens if target price is low, but don't want worse quality or low quality lens, this serial is the right one to you.
Whatsapp: 008618949838193
Wechat/Skype: soyocctv
Email: sales@soyocctv.com

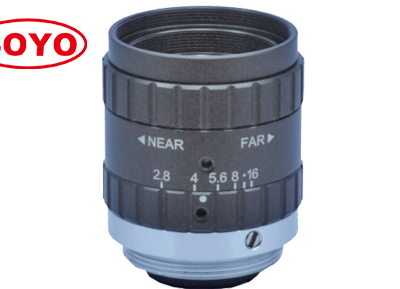

12mm 2/3" 8Megapixel Machine Vision FA Camera Lenses 3.45μm F2.8 TV Distortion -0.037% AI 3D Positioning Industrial Recognition 4K C Mount Optics
High resolution : 8megapixel can used at 10Megapixel camera
Large format: 2/3" size covering 2/3", 1/1.8", 1/2" camera
Low distortion : -0.037% low distortion
Compact size : Very compact small size match all area applications.
Application : Positioning, Inspection for medical, life science, SMT, AOI.
Mode
| SMV1228G-8M
|
Format
| 2/3” (Φ11mm)
|
Resolution
| 8.0 Megapixel
|
Focal Length
| 12mm
|
Aperture (Close)
| F2.8 Manual iris
|
Field of View (°)
| 2/3"
| 110*87.5*65.2mm | 50*41*31°
|
1/2”
| 79.4*63.2*47.2mm | 37*30*23°
|
1/3”
| 59.2*47.2*35.4mm | 28*23*17°
|
M.O.D
| 10mm
|
Distortion TV
| -0.037%
|
Filter Size
| M30.5*0.5mm
|
Magnification
| -0.10214X @100mm WD
|
T.T.L
| 56.95mm
|
B.F.L
| 9.85mm
|
CRA
| 6.5°
|
Dimension
| Φ33.6*43mm
|
Mount
| C
|
Weight
| 77g
|
Marks
| -10℃～+50℃
|
>>
