Product Description
Product Description

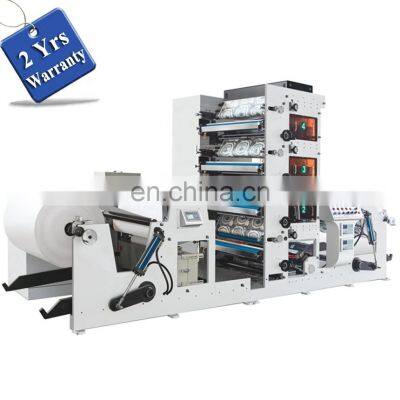

UTR 650 Fully Automatic 4 6 Color Paper Cup Fan Flexo Printer, PE coated cardboard sleeve Blank flexographic printing machine
Videos
Video Demonstration Only For Reference
Video 01: /watch?v=ElspwlBP8I8
Video 02: /watch?v=6aZxSouuZzU
Product Description
Features:
1, Adopts the anilox roller to spread ink.
2, Unwinding and rewinding are controlled by magnetic power brake, clutch, (or by automatic tension controller of Mitsubishi).
3, Each printing unit adopts 360 degree for color registration.
4. Each printing unit has one IR drier.
5. The rubber roller can break away automatically while stopping and running at a low speed in order to avoid ink dried.
6. The main motor is equipped with import stepless regulation of frequency conversion.
7. Unwinding, web guiding, corona treatment,printing, IR drying and rewinding can be finished in one process.
8, An ideal machine to print many kinds of paper rolls before cup making steps.
Parameters:
Model
| UTR650-4/UTR650-6
| UTR850-4/UTR850-6
|
Printing Speed
| 60m-80m/min
| 60m-80m/min
|
Printing Color
| 4 Colors/6 Colors
| 4 Colors/6 Colors
|
Max. Web Width
| 660mm
| 860mm
|
Max. Printing Width
| 650mm
| 850mm
|
Max. Printing Diameter
| 1100mm
| 1100mm
|
Max. Winding Diameter
| 1100mm
| 1100mm
|
Printing Girth
| 180-420MM
| 180-420MM
|
Registration
| ±0.15mm
| ±0.15mm
|
Dimensions(L*W*H)
| 3500*1650*2200mm
| 3500*1850*3300mm
|
Machine Weight
| About 3400kg
| About 4000kg
|
Detailed Images
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min print size in mm?
B: Material thickness and unwinding width
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
Certifications
Pack & Ship
Wooden Case Loading and Transport
Contact Us
YOU ARE WELCOME TO CONTACT US ANYTIME AVAILABLE.
Mobile/Whatsapp/Wechat: +86-18258286679
Email: utecs@ , utecsinter@ , danielsuer@
Skype: danielsuer
Web:
>>
