TPHD3016 High Speed CNC Drilling Machine Product Feature: CNC slide way drilling spindle (Z axis) with work piece of stroke is pre-set, realized auto switch. It can drill not only through-hole, but also blind-hole with high efficiency, simple-structure, low-cost maintenance, easy operation etc. There are 12 hydraulic clamps & T slots for fixing workpieces, easy to operate, also save time, improve production efficiency. This machine have three CNC axis: gantry moving direction (x-axis);drilling head moving direction (y-axis); Spindle feeding direction (z axis). Machine equip each axis with linear guide and ball screw which drived by high precision servo motor. Machine have scrap cleaner which collect iron scraps and cutting liquid. The machine equipped with automatic lubrication system for linear guides and ball screws. Machine adopts SIEMENS 808D system, also equip with computer for drawing and workpiece program processing, easy to operate. The configuration of the machine, like ball screws, linear guides, main electrical parts, servo motors, inverter, etc., all famous brands. Specifications:
| Model | TPHD3016 |

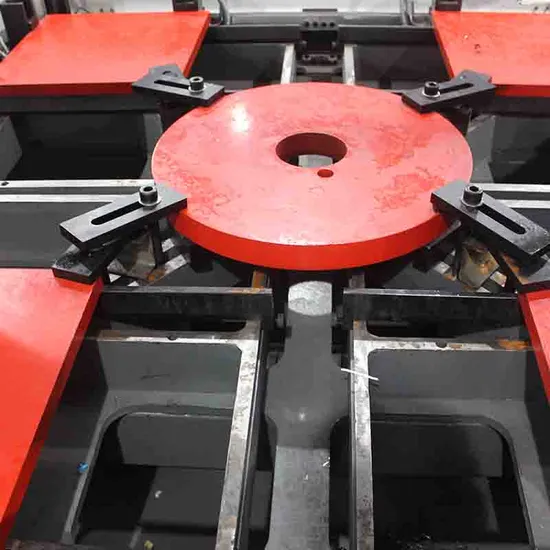

| Max work piece size (L×W) | One pieces max. Size 3000x1600mm plate or Φ1600mm flange
Two pieces: 1500*1600mm or 3000*800mm
Four pieces: 500*800mm
Overlap drilling is possible, need special bits. |
| Thickness of work piece | 6--120mm
Hydraulic clamps: 6-100mm
T Slot: 6-120mm |
| Drill unit type | sliding table, servo control |
| Drill head quantity | One or ATC (8 pics tools) |
| Max drill diameter | Φ50mm |
| Taper hole of spindle | BT50 |
| Spindle speed | 30~3000r/min |
| Spindle vertical stoke (Z axis) | 300mm |
| Z axis feeding speed (mm/min) | 0-5000 |
| Servo motor power of X axis | 2.0 kW |
| Servo motor power of Y axis | 1. 5 kW |
| Servo motor power of Z axis | 2.0 kW |
| Motor power of scrap cleaner | 0.75 kW |
| Clamping type | 12 Hydraulic clams and T-slot |
| Electric control type | SIEMENS 808D |
| CNC axis quantity | 3 |
| Position precision | ±0.08mm |
| With function of CAD/CAM automatic generation |
| With function of break point memory (Restart production easily after power off) |
| Overall size | About 5900x3900x3500mm |
| Weight | About 17000KG |
| Totally power | 30kW |
