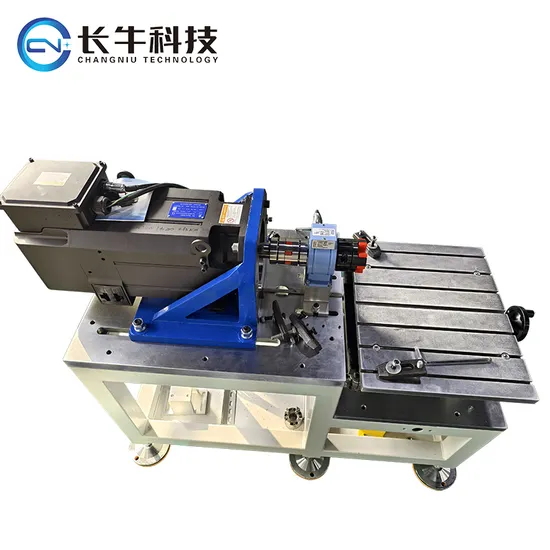

Manufacturer ODM Motor Magnetic Particle Dynamometer Motor Test Machine Test Equipment

Product Description

Manufacturer ODM Motor Magnetic Particle Dynamometer Motor Test Machine Test Equipment
Magnetic particle dynamometer
The magnetic particle dynamometer is composed of a stator, a solid rotor, a magnetic coil, a magnetic particle medium, a bracket, a bottom plate, etc., when the internal coil of the magnetic particle dynamometer passes through the current, a magnetic field is generated, so that the internal magnetic particles are arranged into magnetic chains according to the magnetic field lines, and the pulling force generated by the magnetic particle chain becomes the resistance to prevent the rotor from rotating, and the force is the load moment. The load torque can be changed by changing the excitation current.
It is suitable for occasions with high torque and low speed, such as constant torque with load starting, asynchronous motors, reducers, hydraulic motors, mining machinery and other power machinery.
Features:
Simple structure, compact, large braking torque
Good stability, fast dynamic response
Long service life, easy maintenance

model number	Test range		Operating power		accurate	Cooling method
	torque(N.m)	rotation speed(rpm)	continuous power(w)	short-term power(w)
CNF1	1	2000/5000	50	200	0.5% & 0.2%	natural cooling
CNF2	2	2000/5000	80	300	0.5% & 0.2%	natural cooling
CNF5	5	2000/5000	100	400	0.5% & 0.2%	natural cooling
CNF10	10	2000/5000	150	600	0.5% & 0.2%	natural cooling
CNF20	20	2000/5000	2000	6000	0.5% & 0.2%	air cooling
CNF50	50	2000/5000	3000	9000	0.5% & 0.2%	air cooling
CNF100	100	2000/5000	5000	15000	0.5% & 0.2%	air cooling
CNF200	200	2000/5000	8000	25000	0.5% & 0.2%	air cooling
CNF500	500	2000/5000	10000	30000	0.5% & 0.2%	air cooling

---
