Basic Info.
Product Name

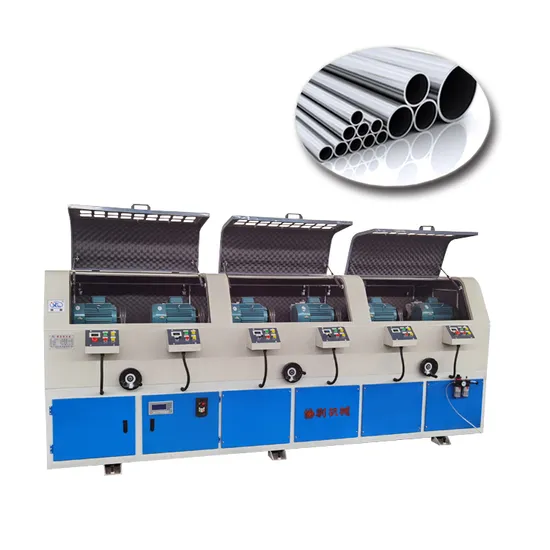

Round Tube Polishing Machine
Accessories
Polishing Wheel
Transport Package
Non Fumigation Export Wooden Box
Specification
700*1200*1000mm
Trademark
Xieli Machinery
Production Capacity
50000pieces/Year
Product Description
Product Parameters
| Project/Model | WX-DLZ-2 | WX-DLZ-4 | WX-DLZ-6 | WX-DLZ-8 | WX-DLZ-10 |
| Input voltage(v) | 380v 50hz,3P |
| Input power(kw) | 8.6 | 18 | 26.5 | 35.5 | 44 |
| Polishing wheel specification(mm) | 250/300*40/50*32(Width can be assembled) |
| Guide wheel specification(mm) | 110*70 |
| Polishing wheel speed(r/min) | 3000 |
| Guide wheel speed(r/min) | Stepless speed regulation |
| Machining diameter(mm) | 4-100 |
| Processing efficiency(m/min) | 0-8 |
| Surface roughness (um) | Ra0.02 |
| Processing length(mm) | 300-9000 |
| Wet water cycle dust removal | optional |
| Dry fan dust removal | optional |
| Feeding mode of grinding head | Digital display electric adjustable |
| Machine tool Total weight about(kg) | 800 | 1600 | 2400 | 3200 | 4000 |
| Equipment Overall dimension(m) | 1.4*1.2*1.0 | 2.6*1.2*1.0 | 3.8*1.2*1.0 | 5.0*1.2*1.0 | 6.2*1.2*1.0 |
Main uses and scope of application
The round pipe polishing machine is mainly used for rust removal and polishing in industries such as hardware
manufacturing, vehicle accessories, hydraulic cylinders, steel and wood furniture, instrument machinery, standard
parts, and before and after electroplating. It is completed in one go from rough polishing to fine polishing.
The round tube polishing machine is the best choice for polishing round tubes, round rods, and slender shafts.
The round pipe polishing machine can be installed with various polishing wheels, such as thousand blade wheels,
hemp wheels, nylon wheels, wool wheels, cloth wheels, PVA wheels, etc,
The guide wheel has stepless speed control, which is simple and convenient to operate. The steel structure is optimized
for more stable performance. The reserved fan port can be equipped with a dust removal fan or a wet dust removal
system, and automatic loading and unloading mechanisms can be matched according to the length of the processed parts.
