| Description | ||
| Application Scope | Switching Voltage Regulators | |
| Polarity | N-ch | |
| Generation | π-MOSⅦ | |
| Internal Connection | Single | |
| RoHS Compatible Product(s) (#) | Available | |
| Assembly bases | Malaysia | |
| Package Information | ||

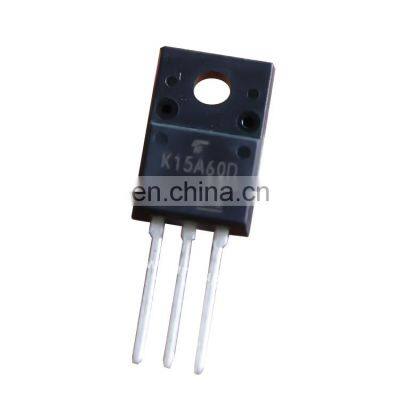

| Toshiba Package Name | TO-220SIS | |
| Package Image | ||
| JEITA | SC-67 | |
| Pins | 3 | |
| Mounting | Through Hole | |
| Width×Length×Height (mm) | 10.0×15.0×4.5 | |
| Absolute Maximum Ratings | ||||||
| Characteristics | Symbol | Rating | Unit | |||
| Drain-Source voltage | VDSS | 600 | V | |||
| Gate-Source voltage | VGSS | +/-30 | V | |||
| Drain current | ID | 15 | A | |||
| Power Dissipation | PD | 50 | W | |||
| Electrical Characteristics | ||||||||
| Characteristics | Symbol | Condition | Value | Unit | ||||
| Gate threshold voltage (Max) | Vth | - | 4 | V | ||||
| Drain-Source on-resistance (Max) | RDS(ON) | |VGS|=10V | 370 | mΩ | ||||
| Input capacitance (Typ.) | Ciss | - | 2600 | pF | ||||
| Total gate charge (Typ.) | Qg | VGS=10V | 45 | nC | ||||
