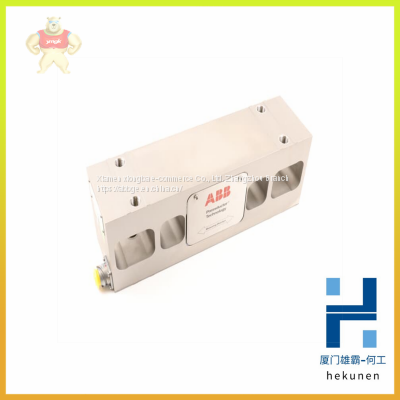

PFTL101A 1.0KN 3BSE004166R1 Swiss ABB force sensor
PFTL101A 1.0KN 3BSE004166R1 Swiss ABB force sensor
This manual describes load cells PFTL 101A, PFTL 101AE, PFTL 101AER, PFTL 101B, PFTL 101BE and PFTL 101BER in a Pressductor® Tension Measuring System. The purpose of this manual is to describe the general function and design of the load cells and also to be a guidance at installation, commissioning, preventive maintenance and fault tracing.
The load cells in the PFTL 101 family are available in six different measuring ranges from 0.5 to 20 kN and two different sizes (see 2.2 Technical Data). Each load cell is individually calibrated and temperature compensated. The load cells are usually mounted and fixed to a base and a bearing housing with six screws, four on one side of the load cells and two on the opposite side. For all load cells of type PFTL 101 the load cell house is machined from a single block of steel. A sensor is then welded into the load cell house and oriented so that it is sensitive to force in the direction of measurement and insensitive in other directions. The load cell types PFTL 101A, PFTL 101AE, PFTL 101B and PFTL 101BE are made of stainless steel. PFTL 101A and PFTL 101B are equipped with a connector for the pluggable connection cable. PFTL 101AE and PFTL 101BE are equipped with a fixed connection cable. Load cell types PFTL 101AER and PFTL 101BER are specially designed for installation in corrosive environment. They are made of acid resistant stainless steel and they also have a fixed connection cable.
Our Email: 2235954483@qq.com
contact number:13313705507
contacts：HE
Load cell PFTL 101A 0,5 3BSE004160R1
Load cell PFTL 101A 1,0 3BSE004166R1
Load cell PFTL 101A 2,0 3BSE004172R1
Load cell PFTL 101AE 0,5 3BSE004211R1
Load cell PFTL 101AE 1,0 3BSE004212R1
Load cell PFTL 101AE 2,0 3BSE004213R1
Load cell PFTL 101AER 0,5 3BSE023010R1
Load cell PFTL 101AER 1,0 3BSE023011R1
Load cell PFTL 101AER 2,0 3BSE023012R1
>>
