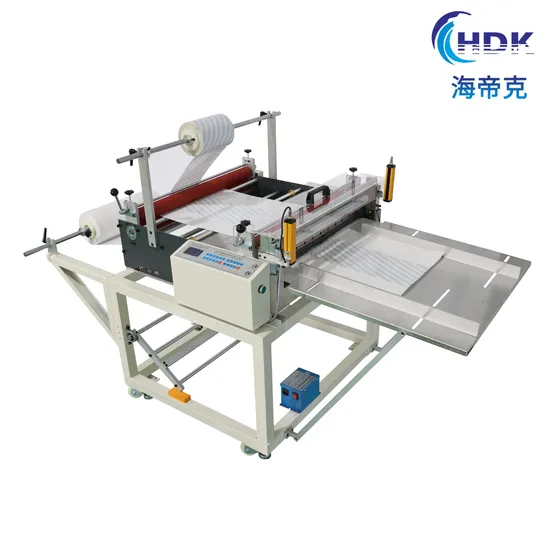

Good Price Foam Adhesive Sheet Sticker Release Paper Laminating Roll to Sheet Cutting Machine

Product Description

Products Description Good Price Foam Adhesive Sheet Sticker Release Paper Laminating Roll to Sheet Cutting Machine

Product name	Lamination Roll To Sheet Cutting Machine
Product model	HDK-700ZF
Power supply	110/220V 50/60Hz
Cutting length(mm)	0.1-99999.9mm
Cutting speed	30-160pcs/min
Feeding width	1-700mm
Cutting precision	0.1mm
Weight	184kg
Size (L×W×H)	910*990*990/1250(mm)
Feeding motor	Stepper motor
Cutter motor	AC motor
Cutter material	High-speed steel

Features: 1,All kinds of film, cloth, paper and other roll materials can be cut.
2,The adjustable speed motor cooperates with the photoelectric sensor to realize automatic unwinding and synchronous cutting with
faster speed, higher efficiency and more accurate precision.
3,The machine is compact in design and smaller in size. It can be moved and installed at any time with all-in-one foot cup
casters.
4,The spring-type feeding mechanism is used with an angle-adjustable material receiving table, which can receive materials neatly
regardless of thickness and save labor.
5,Humanized design, simple operation, stable performance and easy maintenance. Product principle: 1. Automatic group accumulation and total cumulative count
2. Batch pause and delay time can be set
3. There are various manual operations for debugging
4. Can automatically cut all kinds of strips, sheets, plastic tubes and other materials
5. High-speed feeding, controlled by microcomputer program with an accuracy of 0.1mm
6. High-speed stepping motor accurately controls cutting length and speed
7. Cutting time protection; total setting; sub-setting; adjustable timeout
8. The cutter speed is adjustable, all Chinese LCD display, export or foreign companies can be customized English version
9. The length and speed are arbitrarily adjustable, fully automatic cutting and automatic feeding, completely liberating labor
10.LCD large screen intuitive Chinese display, simple and convenient operation; using special mechanical structure and special
tools,With special software control, it solves the problem of uneven cutting in other manufacturers, reaching the level of the
slit and the length
11. Fast feeding speed, high cutting force, high cutting efficiency, stable performance, cutting all kinds of hard and thick
materials, high cutting precision and straight cut
12. Add unwinding motor and induction photoelectric, which can realize synchronous unwinding, solve the problem of slow feeding
speed and poor precision of heavy coils. Material Application Suitable for cutting various PET protective films, reflective films, OPP films, PVC films, PE electrostatic films, ITO films,
plastic films, heat shrinkable films, hot melt adhesive films, thermoplastic films, thermal transfer films, release films,
non-woven fabrics, flocked fabrics, knitted fabrics, non-woven, abrasive gauze, leather, laundry pieces, self-adhesive paper,
insulating paper, release paper, highland barley paper, toilet paper, wrapping paper, roll paper, double-sided tape, copper foil,
aluminum foil, tin paper, EVA foam, pearl cotton and other roll materials. Product packaging Company Profile Dongguan Haidike Automation Equipment Co., Ltd. is located in Dongguan, the world's factory. It is a high-tech enterprise
specializing in the development and production of automation equipment, the design and development of non-standard automation, and
the design and production of automation engineering.
Since its establishment, the company has been adhering to the corporate philosophy of "creating value for customers" and is
committed to providing customers with safe, stable and efficient automation equipment. At present, the company's main products are
microcomputer automatic cutting machines, slicers, tape cutting machines, Pipe cutting machine, label cutting machine, cutting
machine, cutting machine, cross-cutting machine and other automation equipment, and undertake the design and production of
non-standard automation equipment.
The company has a professional R&D, production, and sales team, and constantly absorbs domestic and foreign industry development
experience to introduce new ones. At present, the products are exported to foreign countries and are well recognized by people
from all walks of life. The cooperative industries include electronics, clothing, packaging, textiles, luggage, printing,
printing, clothing, gifts, handbags, plastics and other industries. Friends from all walks of life are welcome to visit, guide and
negotiate business, develop together, and share the fruits of technology!
Welcome to send the materials to try the machine for free, we will shoot the video for you to see the material after the test,
please rest assured to buy. Address: 2nd Floor, Building B, Sinotech Science and Technology Park, No.118, Xiniubeitangdu Road,
Dalang Town, Dongguan City, Guangdong Province ---Hidike Automation Equipment Co., Ltd. Certifications Exhibition Our Services

---
