X6140 Universal Knee Type Horizontal Milling Machine

Product Description

X6140 Universal Knee Type Horizontal Milling Machine

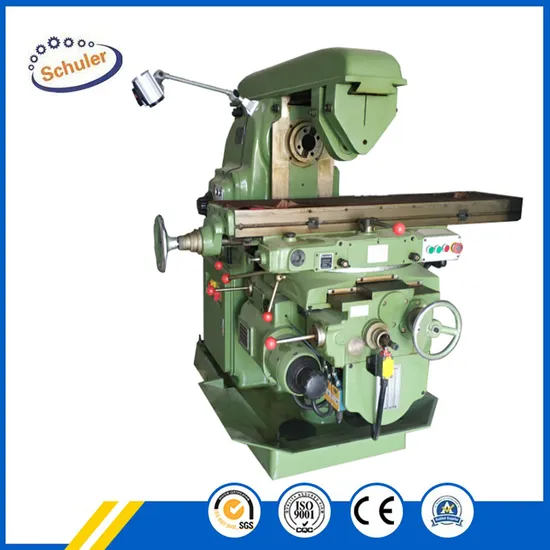

Product picture:
Horizontal Milling Machine Features:
1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operation
Application:
1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear.
3. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Horizontal Milling Machine Technical Parameters:

Item	Unit	X6140
Table size(W×L)	mm	400×1700
T slot(NO./width/gap)	mm	3/18/90
Table travel(X,Y,Z)(manual/auto)	mm	900/880,315/300,350/330
Range of table feed(X/Y/Z)	mm/min	23.5-1180/23.5-1180/8-394
Table rapid speed(X/Y/Z)	mm/min	2300/2300/770
Distance from spindle to table face	mm	30-380
Taper of spindle	/	ISO50(7:24)
Spindle bore	mm	29
Spindle speed range	rpm	30-1500(18 steps)
Swivel angle of vertical milling head	°	±45°
Spindle motor power	kw	11
Feed motor power	kw	3
Feed motor speed	rpm	1430
Overall size	mm	2556×2159×1770
Weight	kg	3800

Brand Image:
As a professional manufacturer of milling machines, we want our customers to know of our commitment to providing the latest products to all customers.
Horizontal Milling Machine Details:
Horizontal Milling Machine Package delivery:
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
If any questions pls feel free to contact me
Contact information :
Edwin
Tel:+86 18663288651

---
