No Mud and Powder Soft Connection Structure Low Water Content Spiral Sand Washer for Construction and Road with CE

Product Description

No Mud And Powder Soft Connection Structure Low Water Content Spiral Sand Washer For Construction And Road With CE Product Information

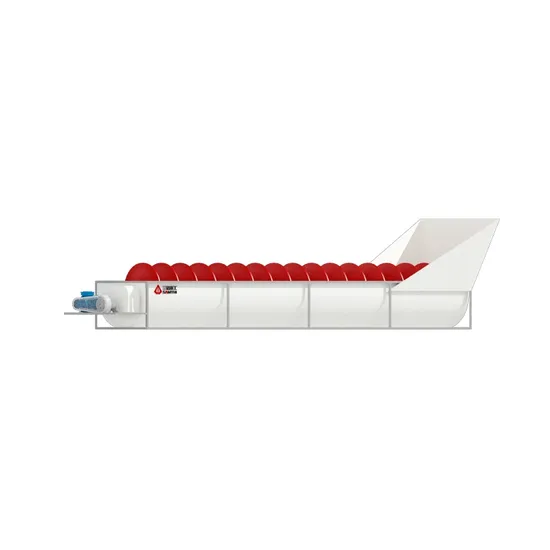

This series of spiral sand washing machines can clean and separate the soil in the sand and gravel, and under the uniform stirring of the spiral blades, the purpose of filtering water, removing impurities, and lifting and conveying can be achieved. The sand washing machine has a long spiral body, thick spiral blades, and a rigorous sealing system; less maintenance, large processing capacity; the sand has low water content, no powder, and no mud. It is widely used in the washing, grading, and impurity removal of fine and coarse grained materials in the highway, hydropower, construction and other industries, and is particularly suitable for sand and gravel used in construction and road construction.
Technical Details

Model	MotorPower(KW)	Amount of Feed (t/h)	MAX Feed Size(mm)	Dimensions(mm)
LX-1000	11	30-80	<=10	8430×2150×3227
LX-1200	11	40-100	<=10	8620×1666×3385
LX-1500	15	60-130	<=10	9320×1988×3755
2LX-1500	15	120-260	<=10	9320×3491×3757

Advantages
1. Long spiral body, thick spiral blades, rigorous sealing system, reasonable overall structure, reliable operation, convenient maintenance, energy-saving and high efficiency, long service life;
2. The bearings in the water tank are built-in, the drainage device is located at the bottom, and the rotating parts are sealed with multiple sets of rubber rings, so that the tail bearings are in a safe and good working environment for a long time, effectively protecting the rotating parts;
3. The sand has low water content, no powder, and no mud;
4. Low energy consumption and good wear resistance;
5. Less maintenance, large processing capacity, relatively long service life, almost no wearing parts, and rarely need maintenance, greatly reducing costs;
6. Flexible process layout, users can set the installation angle of drainage according to different geographical environments and local conditions.
7. The soft connection structure is adopted. When overloaded, it is disconnected first from the soft connection to ensure the safety of the whole machine.
Process
Applicable Materials
Applicable to the production of all machine-made sand in the sand and gravel aggregate industry, including common limestone, river pebble, basalt, granite, iron ore, construction waste, etc.Different models match different materials.
Packing
Company Profile
Chongqing Sanming Heavy Industry Co., Ltd. was established in 1994 as a comprehensive equipment manufacturing company that integrates scientific research, production, sales and service. Adhering to the business philosophy of "honesty, pragmatism and innovation", and focusing on the product orientation of "intelligence, high efficiency, energy conservation and environmental protection," with 30 years of innovative development, Sanming's products now include stone crusher and screening equipment, casting spare parts, intelligent control systems, and EPC general contracting projects, covering numerous industries such as mining, building materials, highways, railways, bridges, coal, metallurgy and chemical industry. It has become a national high-tech company.
Certification
Main Product
Workshop
Finished product workshop
Production workshop
Foundry workshop
Test platform
Create a complete equipment test site for customers to more intuitively display product effects.Including jaw crusher, cone crusher, impact crusher and other machines
Project Case
After Sales Service
We win market respect with quality and win customer trust with professional services.
We carefully inspect and accept each production line, so that customers can put it into production with confidence.
We carry out quality tours all year round, and always adhere to the win-win development concept of "same heart, same virtue, same trade, same sharing".

Exhibition
FAQ
1.Can I have a sample order?
A: Yes.
2.What about the leading time ?
A: 15 working days.

3.Do you have any MOQ limit ?
A: MOQ is 1 set.

4.Can you provide OEM and ODM services?
A: Yes.

5.Will you provide pre-sale services ?
A: Yes. SAMYHI consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
6.Is our after-sales service excellent ?
A: Yes. SAMYHI's skilled technicians are available to assist with onsite installation,commissioning & training on request.
7.Will we provide technical support ?
A: SAMYHI provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
