Motorised Torque Tester

Product Details

Product Description

Product Description

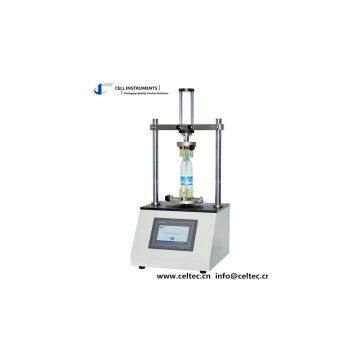

Motorized torque tester is for the locking and opening force test of bottle caps and can beoperated in clockwise and counter-clockwise directions.
Features
PLC control unit and touch screen operation
Both locking and opening force can be measured
Static and rotatory torque measuring up to 10 N.m.
Test parameter and data storage
Automatic rotating
Micro-printer
RS232 port and professional software
Technical Data
Test Range: 10 Nm
Accuracy: 1% FS
Clamp Range: 15mm-140mm
Speed Range: 0.01～15RPM
Dimension: 340×430×750 mm
Standards:
ASTM D2063, ASTM D3198, ASTM D3474, DIN EN 12377

---
