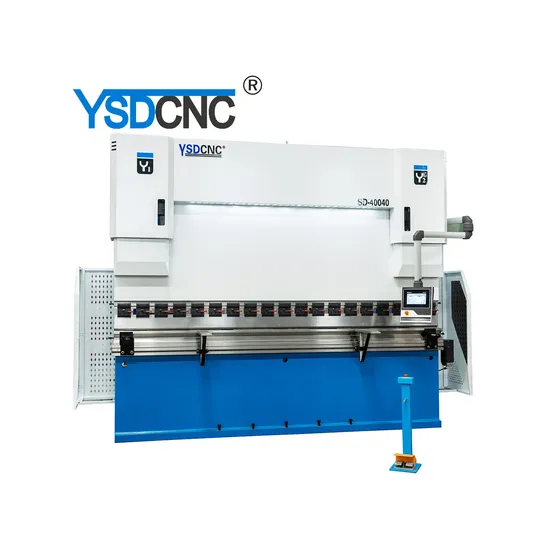

Ysdcnc 4 Axis Da52s Control System Option Crowning CNC Hydraulic Press Brake for Sale

Product Description

Product Description Features
The new compact DA-53T adds a state-of-the-art complete touch control solution for synchronized press brakes.
Offering easiest CNC programming based on the Delem graphical touch screen user interface. This panel based
control, standard capable of controlling up to 4 axes, can be integrated in cabinets as well as used in an optional
pendulant arm housing. Its 10.1" wide screen high resolution colour TFT, with industrial grade multi touch technology,
gives access to the proven Delem user-interface. It enables direct "hot-key" touch navigation between product
programming and actual production. Functions are located where needed, offering optimised ergonomics throughout
the entire application. Details Images RIGID FRAME CONSTRUCTION & DUAL HYDRAULIC CYLINDERS The foundation of every YSDCNC press brake is a solid, mono-block frame made from mill certified, high-yield steel.
As a result our press brakes perform accurately and reliably year after year. We're so confident in our frames that
we offer a 10-year warranty with our standard machines. Dual hydraulic cylinders located on either side of the ram
provide faster approach speeds. The cylinders are synchronized to provide smooth motion resulting in precise
ram positions to accuracies of .0004" WIDE FRAME STANCE YSDCNC made press brakes can easily accommodate parts with deep bends and that require long tooling because of
our open space design. Our machines typically have deeper throat depths, larger daylight spaces and longer stroke
lengths than any manufacturer in the market. We've also mounted the RAM GUIDING on the outside of the frame to
maximize the distance between the side frames allowing our brakes to accommodate deep part flanges. CROWNING SYSTEMS Manual and CNC crowning ensures a constant bend angle across the full length of the machine.This is achieved by
pre loading the machine, to offset any possible deflection under load or compensate for any tool wear, so that under
load contacting surfaces are parallel to each other. With CNC crowning systems the press brake control is
preprogrammed with machine characteristics and deflection data. With manual crowning a simple spread sheet or
chart can be easily developed for each application. BACK GAUGE SYSTEMS The correct back gauge for the application can have a substantial positive influence on production part volume and
accuracy. The more intricate the parts, typically the more axes on the back gaugeyou should have. Volume of parts
needs to be considered also. A smart, experienced brake press operator can bend, form and produce some very
intricate parts without even a single axis back gauge. However, the more time it takes to form the correct part, the
more costs you have in the part. So the best scenario would be to have an experienced operator with the correct
back gauge system that will magnify their skills. But in today's market, smart,experienced Press Brake operators
are getting hard to find. So the correct back gauge for the application will decrease costs per part by helping to
make a good press operator, a great one. The less experience an operator is the more axes you should have. Also,
experienced operators know the benefit of correct back gauge for applications. YSDCNC is here to consult with
you on your application requirements. Manual Crowning Motorized Crowning Hydraulic Crowning Products Description
Laser Protection The DSP laser protection with 3 modes comprehensively protects the personal safety of the operators and
maintains the high level of the productivity of the YSDCNC press brake.
Special punch and die WILA Hydraulic Clamping System WILA has focused on the R&D of the hydraulic clamping systems and supporting tools of press brake machine for
many years, and its quality and service are trustworthy.
Safety Light Curtain The light curtain, YSDCNC chooses is from the well-known brands, with perfect performance to offer a highly effective
solution for both operator safety and machine productivity.
Sheet Follower The YSDCNC press brake with sheet follower for bending long and thin sheets. It places on the front of the press brake
at the height of the bending line.
Robotic Arm Press brakes abound, virtually every metal fabrication shop has one or more, but brakes still remain one of the most labor
intensive machine tools in the fabrication process. Every fabricator understands the benefits achieved by running a press
brake"lights out" 24/7 at top speeds, which can only be accomplished with automation and robots. Browse our offering
of advanced Robotic Bending Automation technology that may be the answer to the efficiency improvements you're looking for. Specification

Model			63T/2500	110T/3200	100T/4000	125T/3200	125T/4000	160T/3200	160T/4000	250T/3200
Bending Length	mm	2500	3200	4000	3200	4000	3200	4000	3200
Bending Capacity	KN	630	1100	1100	1250	1250	1600	1600	2500
Column Distance	mm	2060	2700	3300	2700	3300	2700	3300	2700
Gap	mm	370	400	400	400	400	400	400	400
Daylight Opening	mm	350	400	400	400	400	400	400	400
Stroke	mm	200	200	200	200	200	200	200	200
Table Height	mm	880	880	880	880	880	880	880	880
Table Width	mm	150	200	200	200	200	200	200	200
Fast Approach Speed	mm/s	200	200	200	200	200	200	200	200
Max. Bending Speed	mm/s	10	10	10	10	10	10	10	10
Return Speed	mm/s	160	160	160	160	160	140	140	140
Motor Power	KW	5.5	7.5	7.5	11	11	11	11	15
Length	mm	2825	3500	4500	3500	4500	3500	4500	3500
Width	mm	1650	1650	1650	1650	1650	1650	1650	1730
Height	mm	2430	2540	2540	2540	2540	2580	2580	2580
Weight	kg	5600	8000	950	8500	90000	10000	12000	15000
