CE 5 Inch E-Start Rato 420cc 15HP Gasoline Engine Powered Drum Wood Chipper ATV-15e

Product Description

Product Description
Product Overview:

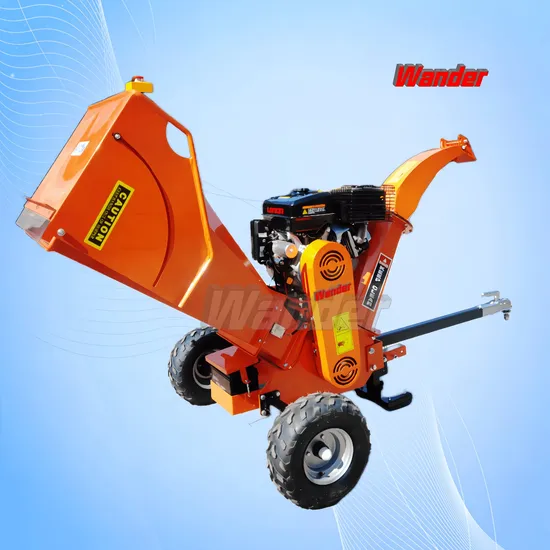

Gasoline ATV Wood chipper is a gasoline powered machine that will turn trimmed tree branches into garden mulch.
That means after branches are cut or autumn leaves have fallen, you can transform the tree materials into a compost that can be used to beautify and nurture your landscape.
ATV-15 Wood Chipper boasts a robust 15hp petrol engine for powerful performance.
With a maximum chipping capacity of up to 5``, it features twin reversible blades for efficient operation.
The inclusion of two pneumatic wheels and a coupler hitch ensures easy transportation.
Feature:
1.WOOD SHREDDER
Handles large wood branches for hours of cutting service. Cuts wood up to 5" in diameter thickness with auto adjust cutting. Dual direct drive gearbox for double blade cutting action. Has plenty of power for processing dry wood, wet wood, fresh limbs, acorns, grass, and leaves
2.POWERFUL ENGINE
Engine gasoline powered motor will provide 15 HP with a 420cc engine air cooled that can rotate the twin blades at operational speed of 2000 RPM and a maximum of 2200 RPM when you need a little extra.
(Engine Brand can be selectedd:Jiangdong,Kohler, Lifan or Locin)
3.DUAL-EDGE BLADE
Twin double-sided blades made of high carbon alloy steel can be reversed to quickly change sides in the field. Blades can be removed with a standard wrench (tools included).
The blade can be resharpened and is reusable.
4.FAST ACTION
The adjustable 180° expulsion chute can feed the chips directly into a pickup truck for fast transport. Large infeed chute 22x20" allows easy inflow management with large handle grips
for maneuvering into position.
5.TOW BAR HITCH
Transport the woodchipper easy at jobsite with included tow bar.
Stands up to off-road pulling, but still compact enough to fit through congested pathways.
6.WHEEL KIT
Rubber off-road 16" tires will manage difficult terrain with ease while support the large frame.
Product Parameters

ATV Wood Chipper Specifications
Model	ATV-15	ATV-15E
Chipper Capacity	4``(102mm)
Max.Branch Cutting Diameter	5``(1120mm)
Drive System	Gasoline Engine Pulley Belt Transmission
Rated Output Powwer	11KW/15HP
Engine Brand	Jiangdong,Kohler, Lifan or Locin
Motor Type	4 stroke
Motor Cubic Capacity	420cc
Engine Start Mode	Recoil start	Recoil or Electric strt
Electric Battery	No	12V Battery Included
Number of Belt	2
Number of Pulley	1 big clutch pulley+1 small pulley
Rotor Diameter	10``(250mm)
Number of Knife	2 cutting knives on rotor + 1 counter blade
Knife Material	65mn/A8
Infeeding Mode	Gravity Self-feeding
Bottom Wheels Size	16 x 5.00-8
Wood Chips Size	2-3 cm
Chipping Output Capacity	4-6 cbm/h
Ejection Rotation	360° turn
Feeding Hopper Length	47`` (1200mm)
Packing Weight	558lgs.(253kgs)	595lgs.(270kgs)
Packing Size	One Pcs 45``L x 33``W x 48``H (1140L x 830W x 1230H)mm Two Pcs 45``L x 33``W x 96``H (1140L x 830W x 2440H)mm

---
