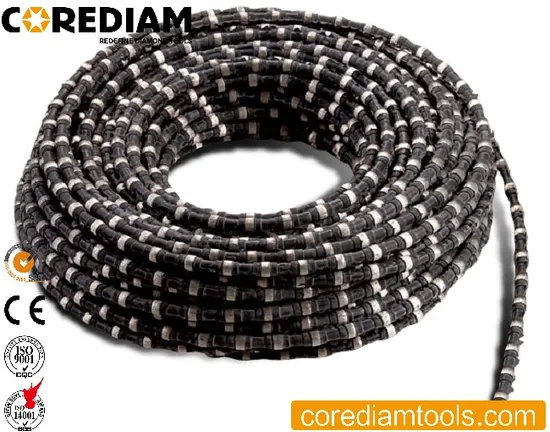

All Size Diamond Wire Saw for Flexible Concrete and Reinforced Concrete/Diamond Tool/Diamond Wire Saw

Product Description

1. Diamond wire introduction

Manufacturing technology	Sinter hot-pressed diamond beads
Diameter	10.5mm, 11.0mm, 11.5mm
Beads No. per meter	40 beads per meter
Connection	Rubber and spring
Usage	cutting various buildings, bridges, pipelines and underwater buildings.

2. Specification

Item No.	Bead Diameter	Beads No./Meter	Fixing
CCWS10540	10.5mm	40	Rubber+Spring
CCWS11040	11.0mm	40	Rubber+Spring
CCWS11540	11.5mm	40	Rubber+Spring

3. Features&cutting performance
Achieve an cut of large, irregular buildings;
Cutting in any direction and partial cutting;
High efficiency and safety without environmental pollution;
The cutting process can be controlled by long distance.
This item of diamond wire have very good cutting performance, lifespan can reach 2.5 sqm per meter.

Cutting Material	Line Speed m/s	Cutting Speed sqm/h	Wire Life sqm/m
normal concrete	22-28	2.0-5.0	2.0-7.0
heavy reinforced concrete	18-25	0.8-2.0	1.5-2.5
steels	16-22	0.5-1.0	0.5-1.2

4. Delivery time
1 week for samples
2-3 weeks for batch orders.
5.Package and loading
6.Corediam introduction
Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world by technology innovation.

---
