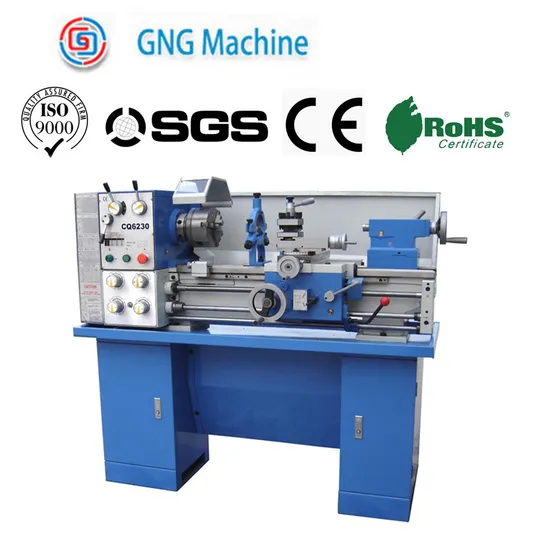

Industrial High Precision Speed Lathe Metal Machining Machine

Product Description

Min. Order Quantity: 1 Set/Sets
Supply Ability: 300 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: L/C,T/T
Quick Details
Condition: New
Type: Horizontal
CNC or Not: Normal
Automatic Grade: Manual
Max. Swing Diameter: 300mm
Place of Origin: Shandong, China (Mainland)
Brand Name: Weihao
Model Number: CQ6230B
Voltage: 380v
Power(W): 1100w
Dimension(L*W*H): 1480x750x1400mm
Weight: 550kgs
Certification: CE
After-sales Service Provided: No overseas service provided
lathe machine in blue color: metal lathe machine can be all colour according customer like universal lathe:
Color: blue
Packaging & Delivery
Packaging Details: packed in plywood package. the customer can requested use te Carton Box or in wood case
Delivery Detail: 30-45days
Specifications
Cheaper price lathe /lathe machine
metal Bench lathe/ Hobby lathe machine/single phase lathe CQ6230 made for modulers' DIY

Model	CQ6230B		CQ6232B
Item	Metric	Inch	Metric	Inch
Max swing over bed	300mm	12"	320mm	12-4/5"
Max swing over cross slide	180mm	7"	198mm	7-25/32"
Max swing over gap	430mm	17"	476mm	18-3/4"
Distance between centers	750/910/1000mm		30/36/40"
Spindle bore	38mm		1-1/2"
Taper of spindle bore	MT5
Range of spindle speed	65-1400rpm/min
Range of longitudinal feeds	0.079-1.291mm/rev		0.003-0.0508"
Range of cross feeds	0.017-0.276mm/rev		0.0007-0.0108"
Range of metric threads	0.4-7mm
Range of inch threads	4-60TPI
Max travel of tailstock quill	100mm		4"
Taper of tailstock quill	MT3
Power of motor	1.1KW/1.5KW
Gross weight	550/590/670kgs
Net weight	500/540/620kgs
Packing size	1480/1680/1940x750x1400mm

---
