Lexan Polycarbonate PC Hollow Marklon Sheet Roofing Sunshine Panel Extrusion Line Extruder Extrusion Machine

Product Description

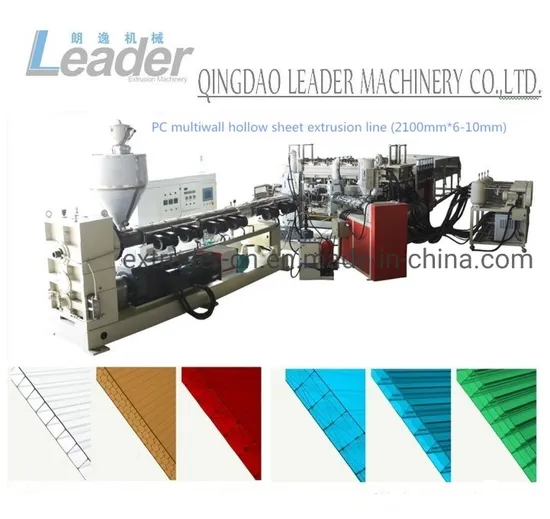

Polycarbonate PC Hollow Grid Sheet/Plate/board Roofing Sunshine Panel Extrusion Line
This pc hollow sheet extrusion line realizes continuous production of PC hollow grid sheet, which is applicable to construction decoration, advertisement collocation, and noise insulation of highway as well as packaging. It is characterized by light weight, high intensity, high transparency dampproof, and anticorrosion.
The technology of hollow sheet die with co-extrusion feed block to get UV+PC+UV, UV+PC hollow sheet can save 30% UV on the surface.
PART 1 SHEET SPECIFICATIONS:
Sheet width: 700mm-1050mm- 1220mm-2100mm-2300mm,
Sheet thickness is 4mm-6mm-8mm-10mm-12mm.
Sheet walls: double walls, three walls, multiwalls
PART 2 COMPONENTS OF THIS LINE

Item	Description	Data
1	SJ120/35 Single screw extruder with stainless steel hopper	1 set
2	Screen exchanging unit for PC	1 set
3	Melting gear pump for PC	1 set
4	SJ45/30 Single screw extruder for UV layer	1 set
5	Melting gear pump for uv	1 set
6	T-type Die head (2100mm*4-6mm)	1 set
7	Vacuum calibrating board	1 set
8	cooling table	1 set
9	The first haul off machine with 12 rollers	1 set
10	edge cutting device	1 set
11	5000mm oven	1 set
12	Corona treating unit	1 set
13	up and down sides, double position film laminating device	1 set
14	The second haul off machine	1 set
15	Tranverse cutting machine (length-settled)	1 set
16	material conveyor+6000mm discharge table	1 set
17	eletrical cabinet	1 set
	other accessory machine parts
18	500kg mixing and drying machine	1 set
19	AC-25 water chiller	1 set
20	15kw air compressor	1 set
21	sheet crusher	1 set

PART 3 SHEET APPLICATIONS:
1) Sunshades for stadium and bus shelters
2) Lighting for corridors, passages and subway entries
3) Bank ATMs
4) Sound and heat insulation for construction such as: houses
5) Canopies for agriculture greenhouse, zoos
6) PC sheets mainly used for building and decorating materials, greenhouse material, telephone booth, insulation shield express ways & highways
7) Office building, hotels, villas, stadium, schools, bus stop, terminals, hospitals, subway entry and exit doors, etc.
Finshed panel introduction
polycarbonate is best known for its very high impact resistance, fine optical clarity and excellen fire performance.
hollow polycarboante is also often named as strutural polycarbonate, cellular polycarbonate, channel polycarbonate or multiwall polycarbonate.
polycarbonate hollow sheets offer the higher level of glazing performance where transparency along with high impact strength is of vital importance. They have excellent physical, mechnical, electric as well as hot property which explains their high reputation in buildings and decoration industry. They are sold all over the world, making great contribution to customer's beautiful life.


UV protection
solar radiation has a harmful component by UV rays which initiate degradation of many polymetric material including polycarbonate.
This depends on geographic locations, seasons etc. Polycarbonate sheets feature a specifically co-extruded UV absorption and protection layer, which provides long-lasting high stability against demanaging UV radiation, protects againts outdoor weathering and
retains its original color and light transmission.


Material:
PC pellets (germany Baier brand with model 3113 or 3117)
UV material (germany Baier brand with model 510 or 130)
PART 5 COMPANY INFORMATION AND MAIN PRODUCTS:
PART 6 OUR RELIABLE SUPPLIERS:
PART 7 COMPANY CERTIFICATIONS:
PART 7 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.
PART 8 COMPANY OVERSEA SHOWS AND CONTACT DETAILS:
PART 10 OTHER KINDS OF PLASTIC SHEETS/PLATES EXTRUSION LINE RECOMMENDATION :
1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 300-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity:300-800kg/h
Application: Vacuum forming, bathtube, etc.

5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads., decoration, roofing, etc.

7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity:200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

9. PVC free foam/celuka foam board extrusion line
board width: 1220mm, thickness: 1-10mm, 3-25mm
board application: decoration board, advertising boards, exhibition boards
extruder model: SJ-80/156 conical twin screw extruder
max capacity: 350kg/h
certifications: CE, ISO9001-2008

10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.


Best regards!
Sincerely yours,
Lilly Zhou, Sales Manager

Qingdao Leader Machinery Co.,Ltd
Address: South of Yangjialin, Beiguan, Jiaozhou, Qingdao, China
Postal No.: 266300
Tel/fax: 0086-532-86620998, 86622373, 82278979

Website: http://extruder-cn.en.made-in-china.com

---
