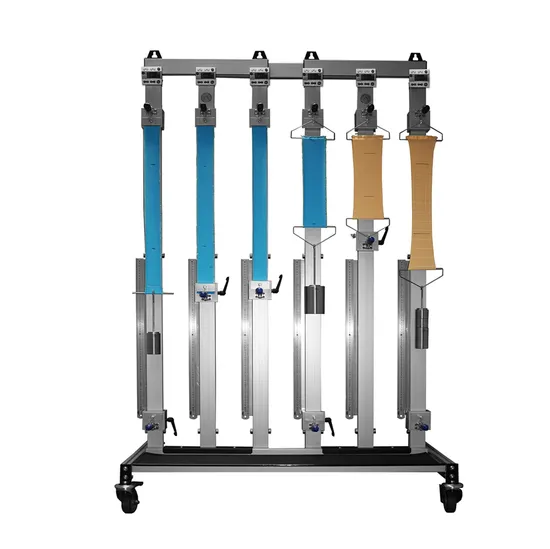

Xd-B34 Fabric Stretch and Recovery Testing Equipment

Product Description

ASTM D3107 Fabric Elastic Properties Tester Stretch and Recovery Tester
Product Description
Product description:
This machine is suitable for testing the elastic recovery performance of fabrics under the action of two methods (fixed force value, fixed length).
Features: Small footprint, large test volume, almost meeting all elastic recovery test standards.
Working principle:
Constant force value method: The upper end of the sample of a certain specification is clamped in the upper fixture, and a weight of a certain weight is hung below to load it for 4 times to test the recovery performance of the sample.
Fixed length method: clamp the upper and lower ends of the sample of a certain specification in the upper and lower clamps, move the lower clamp to stretch the sample to a certain length and hold it for a certain period of time to measure the recovery performance of the sample.
Accessories: Triangular hanger, 1 set of weights 3LB, 4LB and 5LB each (the quantity and weight can be selected according to customer requirements).
According to the standard: ASTM D3107
Product Parameters

Sample	530*530*1800
Single-piece clamp jaw width	80mm
Ring stretch hanger width	150mm
Triangle stretch hanger width	150mm
Load	3LB/4LB (±1%)
Hanging rod	6mm
Volume (WxDxH)	530*530*1800
Weight	≈50Kg

Detailed Photos
Dongguan Astrand Electronic Technology Co., Ltd, with its own brand--ASTRAND, has been dedicating in providing professional testing equipment with top quality since its establishment in 2007. It owns sophisticated and advanced technology in producing Fabric Textile machine, Shoes/Footwear Testing Equipment, Paper and Paperboard Testing Equipment, Environmental test chamber, Universal Tensile Strength Testing Equipment and so on. Products made by ASTRAND reach international standards: ISO, ASTM, DIN, EN, GB, BS, JIS, TAPPI, AATCC. Also they are widely used in different area: R&D Institutions, Quality inspection institutions, universities,electronics, communications, instrumentation, automobile, aviation, etc.

---
