Rotogravure Printing Machine with Electronic Shaft Drive of 200m/Min

Product Description

OUR ADVANTAGES
1.We have taken the lead in developing permanent magnet synchronous gearless traction machine successfully in china,achieving six items of "the whole nation first".
2.We have 20 years' export experience and are ready to serve your market.
3.More than thirty years in elevator spare parts.
4.A leader in Mainland China.
5.We can provide high quality technical support.
6.We guarantee first-rate services.

PRODUCT DESCRIPCTION

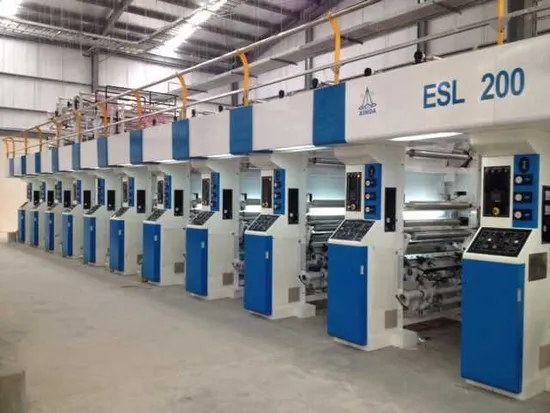

The YA1001050EST series electronic shaft driven rotogravure printing machine is a high printing speed machine to print OPP, BOPP, CPP, SHRINK PVC, SHRINK PET, PET, PE and etc films. Independent double-arms turret type unwind and rewind units can finish automatic cut and splicing without stopping machine. The machine uses servo motor tension control system and every plate cylinder is driven by servo motor for synchronization compensation of register. The parameters are set or modified on a touch screen (HMI). This machine has hot air recycle system and sealed drying ovens with unique hot air nozzles. The rigidity and stability of the machine is ensured by using high quality materials which are processed on high precision CNC machines. Human oriented design of the machine is easily and conveniently for users to run.

Film direction	From left to Right
Power supply	3 P 380 ±10%V 50 Hz(3-phase 5-line system)
Print color	10 colors
Max. web width	1050mm
Max. print area	1000mm
Max. mechanical speed	220m/min
Max. printing speed	200m/min (plate cylinder dia. ≥Φ170)
Tension range	2~30kg
Tension accuracy	±0.2kg
Register accuracy	Vertical register ≤±0.1mm(automatic register adjustment)
	Horizontal ≤±0.1mm(automatic register adjustment)
Max. unwind & rewind web dia.	Φ600mm;800mm
Paper core size of unwind & rewind	Shaftless pneumatic 3" cone chuck the paper core of web or chuck on a 3" air expanding shaft
Rewind tension attenuation	0~100%
Plate cylinder width range	650mm~1150mm
Plate cylinder perimeter/dia.	377mm~942mm/Φ120mm~Φ300mm
Ink transferring roller	Φ100mmsolvent-proof rubber
Dry method	Electric heater (option: steam, thermal oil, natural gas, heat pump system)
Main frame thickness	75 mm
Space between two standard print stations	1700 mm
Unwind & rewind motor	AC7.5kw+ENCODER+FAN Equipped with Germany Rexroth Servo control system
Infeed & outfeed motor	Servo motor 17.5Nm, 2.75kw with Germany Rexroth servo control system
Plate cylinder motor	Servo motor 28Nm, 5.86kw with Germany Rexroth servo control system
Overall size (L*W*H)	25150×4980×4210(mm)
Machine weight	About 60000kg

COMPANY OVERVIEW
With multi-industry and self-supporting import and export rights, China Ningbo Xinda Group Co., Ltd. is one of the largest manufacturers & exporters for elevator key mechanical components in the world. we have 20 years' export experience and are ready to serve your market.Our global annual sales amount reached US$200 million in 2009. We provide worldwide customers with a full line of reliable products:
1. Elevator key components:such as Geared Traction Machine, Gearless Traction Machine, lift motors, Elevator Car, Door Operator, Landing Door, Overspeed Governor, Safety Gear, etc.
2. Complete elevators, escalators, moving walks:such as Passenger Elevators, Freight Elevators, Commercial elevators, Residential Elevator, MRL elevators, Service Elevator, Bed Elevator, Observation Elevator, Indoor or Outdoor Escalators, passenger conveyors etc.
3. Screw air compressors:such as Twin-screw compressor, stationery screw compressors, air-cooled Screw Compressor, water cooled Screw Compressor, oil-flooded compressor, variable frequency screw compressor, portable screw compressor etc.
4. Rotogravure Printing machines:such as combined type rotogravure press, dry lamination machine, rotogravure printing & coating machine, rotogravure printing & slitting machine etc.
CONTACT US
Contact person: Mr.Hongming Zhao
Address: Dongwu Town, Yinzhou District, Ningbo, Zhejiang, China

Website: http://nb-xinda.en.made-in-china.com/
Don't hesitate to contact us if you have any questions.

---
