Auto Platform Single Twin Mast Section Work Climber Platform

Product Description

Product details:

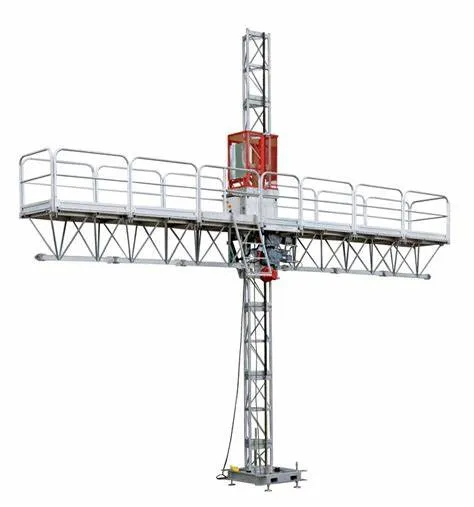

MC650 High quality work platform, from professional manufacturer.
Technical date:

MC 650 -	SINGLE
Platform length (m) (min/max)	4.3/16.3
Platform width (m) (standard/with extension)	1.5/2.7
Max. payload (kg) (at max./min. platform length)	2,000/3,500
Speed (m/min) (50/60 Hz)	8/9.6
Mast	650
Rack module	5
Motor rating drive unit (kW)	2 x 4kW
Power supply	380 V / 50-60 Hz
Max lifting height (m)	200

MC 650 -	TWIN
Platform length (m) (min/max)	8.6/35.6
Platform width (m) (standard/with extension)	1.5/2.7
Max. payload (kg) (at max./min. platform length)	4,000/7,000
Speed (m/min) (50/60 Hz)	8/9.6
Mast	650
Rack module	5
Motor rating drive unit (kW)	4x 4kW
Power supply	380 V / 50-60 Hz
Max lifting height (m)	200

Safety Performance of MC650 mast climbing platform:1.Multiple insurance, safe and reliable;2.dual motor drive, drive double insurance;3.equipped with overspeed anti-fall system;4.equipped with automatic platform leveling system to ensure that the platform level of simultaneous movements;5.equipped with gated safety system to ensure that the door is turned off when the power does not run;6.with the upper limit switch, to avoid the normal use of the platform from the column;7.with ultra-limit switch, to avoid the installation platform from the column;8.with a manual drop switch, so that when the staff can safely evacuate;9.control cabinet with anti-high voltage, low voltage and overload protection;
10.platform protection is complete, scaffolding punch hole anti-slip anti-falling objects hurt;11.Telescopic platform can be extended to any desired position of the console, easy to operate protection.
Packing&Shipping: High quality product is the most important matter, but we can not ignore the importance of package. Well package can protect the product from crash, rust ,mess and so on. It is easy for our clients to identify different spare parts, easy loading and unloading. We pay much more attention to the details...
Below photos is our real package site and high praise by our clients.

Our ability:
After nearly 15 years of development, Xingdou already has a sound production and marketing system.
Our customers not only radiated to China, but also opened up our markets in the Middle East, Central Asia, South America, Southeast Asia and other regions.
Every year, customers from all over the world came to visit and sign orders.
Our products have been well received by customers.
About us:
Shandong Xingdou Intelligent Equipment Co., Ltd, is a professional manufacturer and exporter of vertical access rack and pinion hoist and platform. We supply the whole solution for all customers based on their Mast Climbing platform, Industrial Rack Lift, small elevator for tower crane operators and many special purpose rack lift for mine, warehouse, elevator shaft, chimney, bridges or water plant and so on.. With constant technical innovation and development, our product can adapt to different customers from all over the world.

---
