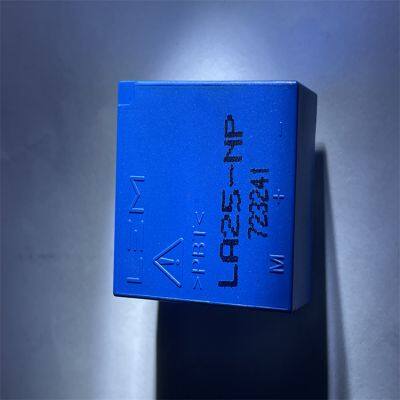

LA 25-NP LEM USA Inc. Current Sensor 5A, 6A, 8A, 12A, 25A (Selectable) 1 Channel Hall Effect, Closed Loop Bidirectional Module

Product Details

Product Details

Product Description

Product Description
Factory
LA 25-NP
Category
Sensors, Transducers
Current Sensors
Mfr
LEM USA Inc.
Series
LA
Package
Bulk
Product Status
Active
For Measuring
AC/DC
Sensor Type
Hall Effect, Closed Loop
Current - Sensing
5A, 6A, 8A, 12A, 25A (Selectable)
Number of Channels
1
Output
Ratiometric, Current
Sensitivity
-
Frequency
DC ~ 150kHz
Linearity
±0.2%
Accuracy
±0.5%
Voltage - Supply
±15V
Response Time
1µs
Current - Supply (Max)
10mA
Operating Temperature
-40°C ~ 85°C
Polarization
Bidirectional
Mounting Type
Through Hole
Package / Case
Module
Supplier Device Package
-
factory pack quantity: 15
