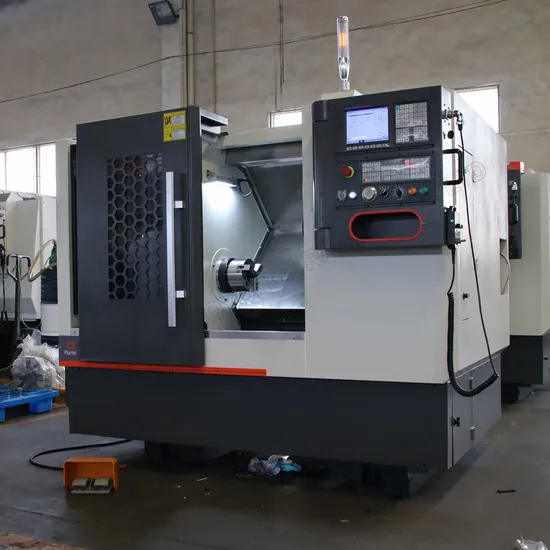

Tck50A Tck56A Tck66A CNC Horizontal Lathe 45 Degree Incline Slant Bed CNC Lathe Machine

Product Description

Features:TCK50A CNC lathe uses a 30 beveled overall bed for more stable force during cutting. The internal ribs are optimized with Ansys software to give the
machine a high degree of rigidity. The bed material is made of high-density cast iron, which has high strength and good shock absorption. The increased
chip evacuation design ensures smooth machine cutting. The guide rail adopts 35-standard precision linear ball guide rail, which has high feed precision,
mall friction resistance, good rigidity, high resistance to vibration and deformation, and enables users to obtain higher machining precision, faster moving
speed and production efficiency.

Model	Unit	TCK50A
Swing over bed	mm	500
Swing over cross slide	mm	190
Distance between centers	mm	370
Spindle bore	mm	65
Bar capacity	mm	45
Spindle nose type	-	A2-6
Spindle speed steps	-	Stepless
Spindle speed range	rpm	3500
Turret/tool post	-	8 Hydraulic turret
Tool size	mm	25 x 25
X axis travel	mm	240
Z axis travel	mm	300
X axis rapid traverse	mm/min	18000
Z axis rapid traverse	mm/min	18000
Main spindle motor	kw	11
Tailstock quill diameter	mm	70
Tailstock quill taper	-	MT4
Tailstock quill travel	mm	80
Tailstock travel	mm	200
Guide rail type	-	Slant bed linear rail
Machine weight	kg	2900
Overall dimension	mm	2500x1700x1750

---
