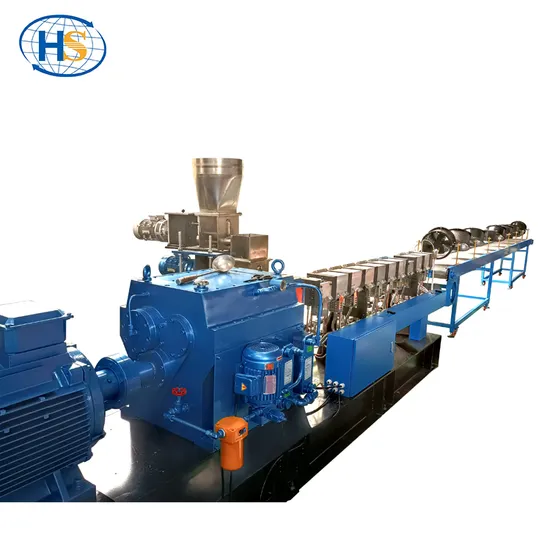

PP PE Plastic Filler Masterbatch Compounding Pelletizer Machine

Product Description

The application

Purpose		Raw Materials
Filling & Modification		PE,PP,PS,EVA+CaCo3,Talcum Powder,TiO2
		PP,PA6,PA66,ABS+Ferrous Powder,Magnetic Powder,Ceramic Powder
Blending & Modification		PP,PA,PE+EPDM;PE,PP,PS+SBS;PP+NBR;EVA+Silastic;TPR compounds
		PP+PE;PBT+PET;PA,,PC,CPE,TPU+ABS
Masterbatch		PE,PP,PS,ABS,EVA,PET+Pigment and additives
Functional Masterbatch		CB masterbatch: PE,PP,PS,ABS,EVA+carbon
		Flame retardant masterbatch: PE,ABS,PA PBT+flame retardant&additives
		Degradative masterbatch: PE,PS+Starch;PP+CaCO3,Talcum powder
		Safeguard function masterbatch:Masterbatch of heat insulator
Glass Fiber(carbon fiber,wood fiber) Reinforcement		PE,ABS,AS,PBT,PET,PA,PC+Carbon fiber
		PP,ABS,AS,PBT,PET,PA,PC,PPO+long glass fiber or shot glass fiber
Various Cable Material		HDPE, LDPE, LLDPE, MDPE insulating bush, cable shield
		PE Six-XLPE cable compounds,PE chemical crosslink cable compounds, PE radiation crosslinking cable compounds,H-cable compounds
		PVC wire&cable compounds
		HFFR,Polyolefine cable compounds
Powder Coating		Polyester coating,Polyurethane coating,epoxy resin coating,Propyl coating; Pcrylic coating
Heat-Sensitive Material (Cascade type)		PVC wire&cable compounds, Undersole compounds
		Flexible/Rigid-PVC compounds and Semerigid compounds etc.
		Non-toxic transparent PVC-bottle material, Perfusion-tube material,Blood transfusion-haustrum material
		Low-smoking&non-halogen flame-retardant wire&cable compounds, PE cross-linking/peroxide crosslinking compounds
		Dynamic state cross-linking thermoplastic-elastomer compounds,Radiating cross-liking wire&cable compounds plastic filler or color masterbatch machine

The date of the machine

Mode	Screw Diameter D(mm)	Screw Length(mm)	L/D	Screw Rater N(r/min)	Motor Power P(kw)	Torque T(N.m)	Torque Level T/N3	Capacity Q(kg/h)	Weight(kg)	Dimension (m)
SHJ-20	22	150	32-44	600	5.5	43	7.5	0.5-10	1000	1.7*0.5*1.8
TSE-30A	31		32-48	500	11	105	5.9	5-30	1500	2.4*0.63*2
TSE-30B				600	15	119	6.7	5-40
SHJ-35A	35.6		32-48	600	15	119	4.4	20-60
TSE-40A	41	160	32-64	400	22	263	6.4	65-110	3000	2.9*0.65*2
TSE-40B	41	160	32-52	600	30	239	5.8	90-150
SHJ-50A	50.5		32-52	500	45	430	5.4	135-225
TSE-52B	51.5	210	32-64	600	55	438	5.5	225-250	3000	3.8*2*0.69
TSE-52C	51.5	210	32-64	600	75	597	7.5	200-300
SHJ-65A	62.4	240	32-52	400	75	895	6.3	180-250	4000	4.2*0.67*2.2
				500	75	716	5.1	180-250
TSE-65B	62.4	240	32-64	600	90	716	5.1	200-300
SHJ-75A	71	290	32-56	400	90	1074	5.0	225-350	4000	4.8*0.78*2.3
				500	110	1050	4.8	250-450
TSE-75B	71	290	32-64	600	132	1050	4.8	350-550
TSE-75D	71	290	32-64	60O	220-250	1990	9.2	500-1000
TSE-95A	93	360	32-64	500	250	2387	5.0	600-1000	4000	6.2*0.87*2.4
TSE-95B	93	360	32-64	600	315	2506	5.3	800-1200
TSE-135A	133		32-64	500	750	7162	5.38	1500-2250	4000

1.Electric control system
Frame structure control cabinet
Imported electrical elements
Imported temperature control system
Imported driving system
Interlock and multi-protection
Adopting imported PLC (OMRON or SIMES ) to achieve optimized process control.Stronger function, steady performance and much higher accuracy.
It can be also accomplished full-set link-lock protection, trouble safeguard, fault alarm cluing and so on
Operation interface on touching screen is visual and marked, which is brief and easy to use.

2.The Gearbox
New-style project of parallel three-axises driving makes the convey axis, convey chain, decelerate and the torque assignment get together, which keeo it compact, and the key bearings are imported.
The select material of drive components is dainty.Including super intension alloy cementiteing steel, cementiting and quenching, gear grinding technics, strengthening of tooth face.So they can ensure high torque, high precision and low noise.
Soakage and coerce lubrication integrate smoothly.When the hydraulic circuit is over pressed, it alarms
3.The Screw Barrel
Euro-style rectangle barrel, reflux refrigeration is optimized and disposed, which makes temperature difference in C areas smaller
According to the material and special techinics demands, the material of cylinder can use high quality nitrided steel, corrosion proof or antifriction with corresponding process
The screw material is made of high tool steel 38CrMoALA or W6Mo5Cr4V2 by special heat- treament
The application of the machine
Elastomer TPU, TPE,TPO,POE,EVA,SBS
Thermo-plastic PE, PP, PS, PA modified
Low viscosity reaction polymer, all kinds of hot-melt adhesive
Pure polymer
Extensive heat and mass transfer, narrow residence time distribution, large surface to volume
ratio, continuous operatio. Ideal for high viscosity, high temperature reaction systems.Conti-
nuous polymerization or reactive extrusion like dynamic vulcanization, cross linking, grafting,
and chain extension of PP, TPU, TPE, TPV, PUR, PA, POM, PEI, PC, PMMA, PBT, etc.

KR-Mach is a leading plastic and rubber machinery supplier.
Our products includ:
1 Plastic Extrusion Pelletizing Machines
2 PP PE+caco3 filler masterbatch
3 Plastic Recycling Machines
4 color masterbatch machine
Over the years we have supply the world market, like USA UK FRANCE RUSSIA TURKEY SOUTH ASIA MIDDLE EAST
SOUTH AMERICA all kinds , all kinds of plastic and rubber machines.
Our company
Kairong group , headquartered in Nanjing, China, is a global manufacturing and trading company in the field of highperformance plastics and rubber processing equipment , extrusion solutions, masterbatch and compounding, etc. Its unit Nanjing Haisi Extrusion Company is a prefessional manufacturer of twin screw extruder, single screw extruder ,two stage extruder and its related auxiaries. We tailor solutions from raw materials, materials processing equipment, to injection for different customers. Each Kairong solution is designed , manufactured, and commissioned by experienced teams of professionals engineers and aftersales staffs.
FAQ:
1. Q: How about Haisi? R: Nanjing Haisi Extrusion Equipment Co., Ltd. is a High-Tech company. Our firm is composed of a strong team which has substantial experience in R&D, manufacture, technique and service, and has specialized in extruder industry for ten years, leading screw barrel manufacturer in China. 2. Q: What is the MOQ? R: We are the manufacturer of extruder machine. Also we provide the whole set of plastic pellet production line solution. So you can also buy spare parts and auxiliaries of the extruder in our company. 3. Q: What's the delivery time? R: Usually the processing period is around 50 days. Before you place the order or before we send it out, we warmly welcom you come to visit and check the extruder! 4. Q: Where is Haisi factory and how to reach there? R: At Lishui, Nanjing, Jiangsu Province. If you want to visit us, we can pick you up in the airpor or train station. 5. Q: How to contact with us? R: Plz send an inquiry to me directly if you have any question.

---
