Anon Self-Propelled Crawler Type Wheat Paddy Rice Grain Combine Harvester Medium Harvester

Product Description

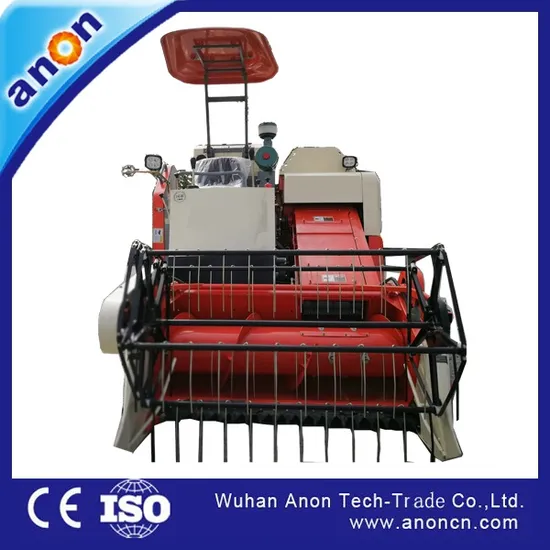

Anon Self-Propelled Crawler Type Wheat Paddy Rice Grain Combine Harvester medium harvester
Advantage:
This small combine harvester is specially designed for small field blocks in hilly and mountainous areas, with light weight, flexible and convenient operation; ground clearance of 280mm, strong passability.
AN4LZ-1.6Z can be equipped with 45 horsepower, 50 horsepower and 60 horsepower engines, 50 gearboxes, 28 stepless transmissions, and crawler bandwidth 400;
Easy operation and maintenance, low fuel consumption, energy saving and environmental protection, harvest experts in hilly and mountainous areas.
Specification of Anon Self-Propelled Crawler Type Wheat Paddy Rice Grain Combine Harvester medium harvester:

Overrall dimension	4300*1980*2675mm
Weight	1850kg
Feeding capacity	1.6kg/s
Harvesting capacity	0.2-0.4hm2/h
Engine	Model	N490, 490BT-10
	Rated power(kw/hp)	34/46, 37/50, 44/60(alternative)
	Type	water-cooled, 4-cylinder, Dl-injection, Vertival diesel
	Rated rotation speed	2400r/min
Driving system	Rubber track	400*91*43mm
	Minumum ground clearance	280mm
	Type of gearbox	Hydraulic type+HST(3F,3R)
	Theoretical operating speed	0-5.1km/h
	Type of brake	by foot
	Steering	Clutch and brake
Cutting header	Pick up reel	Eccentric tooth(off-centre), diameter: 823mm, Nos:5
	Height adjustment	Hydaulics
	Cutting bar lenght	1550mm
	Type of header auger	Telescopic screw conveying
	Type of blade	V Type/Left and right
	Rape seed extension	Opthional
Threshing&Separating& Cleaning system	Threshing system	spiked tooth axial flow
	Threshing cylinder size diameter	540*1521mm
	Concave sieve	Grid*4
	Vibrating sieve	Adjustable sieve/Meshing sieve/Hole seive(optional)
	Fan	Type: swirl, Diameter:350mm, Nos:1
Grain storing	Option 1	Grain tank with unloading auger, capacity: 950L
	Option 2	Grain tank with 360° unloading auger
	Option 3	Manual operation

---
