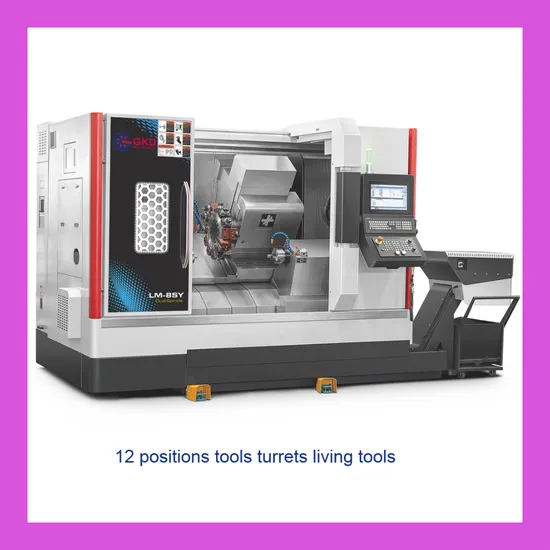

Hydraulic or Pneumatic Dual Spindles CNC Lathe

Product Description

Precision-Engineered CNC Turning Lathe Center with Y-Axis and Live Tooling CNC (Computer Numerical Control) turning lathes have profoundly transformed the manufacturing landscape, offering unparalleled precision and efficiency in production. These state-of-the-art machines can seamlessly perform a variety of operations including drilling, tapping, turning, and boring. Widely utilized across diverse industries such as automotive, aerospace, medical, and electronics, CNC turning lathes produce intricate and highly precise components, meeting the highest standards of quality and reliability.
In this comprehensive article, we delve into the fundamental components of a CNC turning lathe, dissect its working principles, and explore its broad range of applications in various industries.
Product Parameters

Model	LM-10SY
Double spindle/single power turret
Number of axis	7 Axis(X+Z+Z1+C1+C2+Y+TD)
Max turning diameter on the bed	Ф500mm
Max processing length	480mm
Max processing diameter	Ф450mm
Main spindle nose	ANSI A2-6
Main spindle hole	Ф79mm
Bar hole diameter	Ф69mm
Main spindle speed	0-4500rpm
Main spindle Chuck size	8"(Hydraulic chuck)
Sub-spindle nose	ANSI A2-5
Sub-spindle hole	Ф56mm
Bar hole diameter	Ф46
Sub-spindle speed	0-4500rpm
Sub-spindle chuck size	6"(Hydraulic chuck)
Main Spindle power	11KW
Sub-spindle power	7.5KW
X1 axis power	3.1KW
Y1 axis power	3.1KW
Z1/Z2 axis power	3.1KW
TD axis power	3.1KW
Hydraulic pump motor power	3.1KW
Cooling pump motor power	1.5KW
Tool turret position	12pcs
Turret model	BMT55
Outer diameter shank	25mm
Boring tool holder diameter	Ф40mm
Living tools milling speed	0-4000rpm
X1/Y1/Z1/Z2 axis rapid speed	20m/min
X1 axis travel	600mm
Y1 axis travel	140mm(±70mm)
Z1/Z2 axis travel	500mm
Spindle indexing repeat positioning accuracy	±0.005°
Spindle indexing positioning accuracy	±0.002°
X/Y/Z/Z1 axis repeatability position accuracy	0.002mm
X/Y/Z/Z1 axis position accuracy	0.003mm
Cooling tank capacity	180L
Cutting cooling water pressure	1.85 bar
Machine weight	5600KG
Machine size	3500x2300x2300mm
Controller	Syntec

Company Profile
For many years, GKD (Mingju) has passionately dedicated itself to integrating cutting-edge resources and pioneering technologies. Our commitment is to deliver unparalleled quality, serving customers across the globe with excellence.
GKD is an esteemed conglomerate specializing in the research, development, and manufacturing of state-of-the-art CNC machining centers. Our headquarters, located near Hong Kong in China, proudly bears the title of 'World Factory'. Augmented by our strategic European headquarters in Italy (Taiwan), GKD boasts an extensive global sales and service network. We operate five prolific production bases in Dongguan, Chongqing, Anhui, Hunan, and Jiangsu. Our product line includes vertical machining centers, high-speed gantry machining centers, horizontal machining centers, horizontal boring and milling machines, CNC lathes, turning and milling centers, five-axis machining centers, and other high-end CNC machine tools and production lines. We have established ourselves as a comprehensive manufacturer of CNC metal cutting machine tools in China, offering a full industrial chain. Our products find applications in aerospace, mold-making, automotive, energy, marine, engineering machinery, 3C electronics, and various other sectors.
GKD Group is unwavering in its commitment to delivering top-tier products and holistic solutions. We rigorously adhere to the principles of high-speed, high-precision, and high-efficiency in intelligent equipment, crafting premium solutions that balance quality and cost-effectiveness. With robust manufacturing capabilities and exceptional after-sales service, GKD has extended its reach, providing a comprehensive range of products and services to numerous countries and regions worldwide.
GKD Group is dedicated to serving you with sincerity and excellence!
Our Advantages
1. Unmatched Expertise in CNC Machine Exports: Our team provides the most professional services in the CNC machines exporting field, ensuring seamless transactions and ultimate satisfaction.
2. Superior Manufacturing Capabilities: Leveraging cutting-edge Italian and Taiwanese technology, we achieve unparalleled manufacturing precision and efficiency.
3. Flexible Payment Options: Choose from various convenient payment methods including T/T, Western Union, L/C, and PayPal, tailored to suit your needs.
4. Premium Quality at Competitive Prices: We commit to using high-quality, safe materials while offering competitive pricing to provide you with the best value.
5. Small Orders Welcome: We cater to all business sizes, allowing you to place small orders with ease and flexibility.
6. Rapid Response Times: Our dedicated support team ensures prompt and efficient responses to all your queries and needs.
7. Reliable and Speedy Shipping: Experience secure and fast transport solutions that guarantee the safe delivery of your products.
8. Customized OEM Designs: We offer bespoke OEM design services, tailored to meet the unique requirements of every customer.
Certifications
Packaging & Shipping
After Sales Service
1)
We proudly offer a quality warranty period of 12 months, starting from the day the shipped commodity arrives at the port of destination. During this period, we will provide replacement fittings free of charge, excluding damages caused by physical impact. Kindly return any damaged fittings to us via courier at your cost before we send the replacement parts. Post-warranty, any repairs or replacements required will incur a reasonable charge.
2)
Given the challenges of in-person maintenance, we offer extensive online support. Our technical assistance is available through email, MSN/Skype, camera, video, telephone, and fax. This robust support system ensures you receive help with installation, operation, adjustments, and maintenance whenever needed.
3)
Should you encounter issues beyond the scope of our online support, we provide Door-to-Door service. If on-site assistance is required, we ask for your support in processing visa formalities, prepaying travel expenses, and arranging accommodation for the engineer(s). Additionally, please arrange a translator for our service engineer. Alternatively, you are welcome to send your engineers to our factory for comprehensive, long-term technical training at no extra cost.
FAQ
1. What is your minimum order quantity and warranty?
Our minimum order quantity is just one set, and we proudly offer a comprehensive one-year warranty.
2. What brand of the bearing do you use?
We use premium NSK bearings, imported directly from Japan.
3. When is the delivery time?
Your order will be delivered promptly within 15-30 days after we receive your payment.
4. How do you handle the warranty period?
During the warranty period, if any product quality issues arise, we take full responsibility for free maintenance. Should any parts need replacement, we will provide them at no extra cost. If the issue is not related to our machine's quality, and the buyer requires our engineers for repair services, we will charge a nominal fee.
5. Can your company send technical personnel to our company to train our workers for free?
Upon the machine's arrival at the buyer's installation site, we will promptly dispatch our qualified mechanical and electrical engineers for installation, in accordance with the buyer's schedule. The buyer will cover the accommodation and meals of our personnel during the installation process, along with a fee of USD150.00 per day per person. We will also assist the buyer with visa processing and installation preparations.

---
