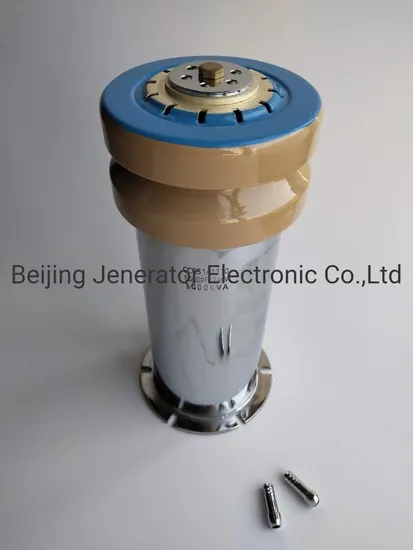

High Frequency Water-Cooled Capacitor 5000PF

Product Description

The capacitors CCGS serials have the characteristic of high voltage withstanding, high reactive power (it is 20 times as regular goods), good HF function, long life and easily installing.
And they are mainly used in the machines of HF welding, HF dry, HF furnace, etc.

Model	Nominal power capacity	Rated voltage(KV)		Reactive power	Current Maximum	Dimension(mm)					Temperature coefficient
	(PF)	DC	HF(RMS)	(KVA)	(A)	D	H	h1	h2	Copper Nut	(PPM/ºC )
CCGS-0	500	20	15	1000	150	095	162	18	55	M8 (7-M5)	-750
	1000
	2000	14	12	1500
	2500
	5000	12	10	1275			220		110
CCGS-1	1000	20	15	2000	200	110	255	20	105
	2000
	3000
CCGS-2	2000	20	15	2000	250	135	242	22	108
	2500	25	20	2500
	3000	20	15	2000
	4000	16	12	2500			218
	5000			2830			250		128
	5000	20	15	3000			285		134
	6000	16	12	2830			272		134
	6000	20	15	3000			320		170
CCGS-3	4000	24	20	3000	250	142	285	25	134
	5000						314
	6000	20	15				320
CCGS-4	5000	30	25	3500	300	158	340	30	170	M10

High power ceramic capacitor technical parameters:
1. Typical dissipation factor: ≤0.0008;
2. Volume resistivity: ≥10000MΩ;
3. Permissible variation of rated capacitance: K(+/-10%);
4. Temperature range: -40/+85;
5. Rated temperature: +85ºC;
6. Maximum relative humidity: 75%;
7. Test voltage: 2 times of rated voltage if the rated voltage≤15KV or 1.5 times of rated voltage if the rated voltage>15KV.
Other ceramic disc capacitors:

Model	Rated Capacitance	Rated Voltage	Rated Power	Max Current	Dimensions (mm)			Temperature Coefficient
	(PF)	(KVDC)	(KVA)	(A)	D	H	Copper Nut	(PPM/ ºC )
PE200	1000	30	150	60	200	55	M10	-750
	1500
	1600
	2000	14				45
	2500
	3000
	4000	13
	5000
	6000	12			205

High power ceramic capacitor technical parameters:
1.Typical dissipation factor: ≤0.0008;
2.Volume resistivity: ≥10000MΩ;
3. Permissible variation of rated capacitance: K(+/-10%);
4.Temperature range: -40/+85;
5. Rated temperature: +85ºC;
6.Maximum relative humidity: 75%;
7. Test voltage: 2 times of rated voltage if the rated voltage≤15KV or 1.5 times of rated voltage if the rated voltage>15KV.

---
