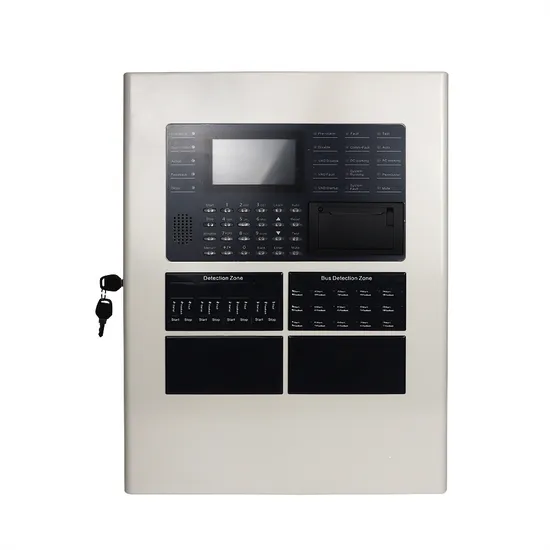

Intelligent Addressable Fire Alarm System with Fire Alarm Control Panel for Alarm System

Product Description

Fire Alarm Control Panel(F.A.C.P) integrates various functions such as fire alarm, linkage control, supervision alarm, and network communication. It meets GB4717-2005 and GB16806-2006. And it is widely used in large, medium and small sized fire alarm engineering such as hotels, office buildings, residential buildings, gymnasiums, libraries, etc.
The F.A.C.R adopts high-performance microprocessor, intelligent digital bus and other technologies, collect alarm signals and environmental parameters such as smoke and temperature in real time, and conduct fire judgment through analysis and processing. Set up the linkage relation in different zones and different linkage logic to automatically control the devices to linked fire-fighting. Adopt modular structure, strong anti-interference and anti-vibration ability, reliable operation, stable performance, low false alarm rate, flexible expansion and easy maintenance. English system with menu guide, easy to operate.
Structural
The F.A.C.P. is mainly composed of M.board, display zone, loop card, loop expansion card, detection zone, multi-
line module, bus detection zone, power supply, battery, etc. Shown in Figurel.
M.board receives signals from the detectors and sends out alarm signals to the loudspeakers. It also receives signals from the detection zone, and sends out control signals through the detection zone.
Display zone operates and indicates the working state:
and sends out alarm signals to printer.
Loop card connects to the external smart devices.
Loop expansion card(optional) extends the loop cards.
Multi-line module (optional) uses with detection zone tc control pumps, fans, elevators, etc.
Detection zone(optional) uses with multi-line module tc control pumps, fans, elevators, etc.
Bus detection zone (optional) is on the box door tc control bus linkage.
Power supply and battery supply power to the F.A.C.P.
The F.A.C.P. connects to the SCM series devices produced by our company such as intelligent smoke detectors, heat detectors, input modules and manual call points in two-wire bus. Display alarm information in detail, anti-interference ability and high reliability.
onitors the devices in real-time, displays the devices actions and feedback information in detail. Supervision alarm The F.A.C.P. connects to the SCM series intelligent input modules produced by our company in two-wire bus, detects the flow indicators, pressure switches and so on, receive the supervisory alarm information, the LCD displays the alarm location, time, the device address and type to achieve linkage. Disable Disable all kinds of addressed devices and display the details. Fault detection Automatically detect faults of the F.A.C.P. and intelligent devices, fault alarm with sound and light signals, and displayed the details on the LCD. System test View the factory number and current address of the device, also can set address or program for it directly. Network communication Adopt SECAIR dedicated network communication interface, such as 485, 232, LORA, WIFI, CAN, etc. All types of M-series can be connected together creating a peer-to-peer network. Black box Automatically store historical records such as fire alarm, pre-alarm, supervision, linkage, fault, disable, power on/off, etc. Print Automatically print fire alarms, pre-alarms, supervision information, linkage actions and devices list. Automatic switching between AC power supply and backup battery AC power supply and backup battery can be switched automatically. The backup battery has under voltage protection to prevent damage to the battery due to excessive discharge. Operation authority The F.A.C.P has three user control levels. Up to six passwords can be programmed.
Features Flexible configuration by modular design. Large screen colour LCD, flat Ul design. Our comprehensive range of interfaces to solve all your interfacing requirements, including ACDL, CAN, WIFI, GPRS, LoRa, NB-loT and etc. 0.2 second extremely high speed linkage. 0.3 second extremely high speed bus alarming. Seamlessly docking the SECAIR IOT. Infrared radiation sensor, the screen can be light up automatically when a human body approaching. Technical Specifications

Mechanical specifications	JB-BG-SCM5	JB-LG-SCM7	JB-QT-SCM7
AC input voltage	220V±10i5 %, 50 Hz±1%	220V±10i5 %, 50 Hz±1%	220V±10i5 %, 50 Hz±1%
AC input power	180W
Devices(Max)	1800	3800	3800
Wiring method	two-wire bus (non-polarized)
Loop output current	3.6A(Max)
DC Battery	DC24V/7Ah	DC24V/17Ah	DC24V/17Ah
Detection zones	2(Max)	18(Max)	18(Max)
Bus detection zones	2(Max)	18(Max)	18(Max)
Max loop length	5km (based on ZR-RVS-2*1.5mm2)
Dimensions(WxHxD)	380 x 510 x 100mm	550 x 1700 x 450mm	1050 x 1349 x 910mm

---
