Interior Polyester Coating Wall Decoration Aluminium Composite Panels/ACP

Product Description

Interior Polyester coating wall decoration aluminium composite panels/ACP
For inside/indoor or outdoor signboad use.
Company Information About us Guangzhou GEESHINE Building Materials Co., Ltd. GEESHINE is a subsidiary of Linyi Xingda Aluminum Plastic Decorative Material Co., Ltd which is one of the earliest manufacturers of color coated aluminium coils and aluminium composite panels,aluminium honeycomb sheets.
After 18 years' development from 2003, XINGDA now has 8 production lines, 200 experienced workers, 15 senior engineers, and an 85,000 square meters' plant and the production output more than 9 million square meters aluminum composite panels. Now we are starting to invest in a coated aluminum coils plant to meet the high requirement products demand. Product Description POlyester coating 4x8 acp aluminium cladding composite panel consists of two sheets of corrosion resistant aluminum permanently bonded to polyethylene core material. The surface of the front aluminum is Polyester finished which can be made into different colors.

Specifications
Product name	Interior Polyester coating wall decoration aluminium composite panels/ACP
Brand	GEESHINE
Panel Width(mm)	1220mm,1250mm,1500mm, 1550mm
Panel Length(mm)	2440mm,3050mm,4050mm,max 6000(no limited as per loading container)
Panel thickness(mm)	2mm/3mm/4mm/5mm/6mm (Standard 3mm/4mm)
Aluminum Alloy	AA1100,AA3003,AA5005 series
Glossy	40%-90%
Aluminum coil thickness	0.06mm,0.08mm,0.10mm,0.12mm,0.15mm,0.18mm,0.21mm,0.30mm,
Surface treatment	Polyester coating
Thickness of coating	16um to 18um
Coating flexibity	3T
Coating adhesive	>1 grade
Peeling Strength	5N/mm
Coefficient of Linear Thermal Expansion	2.4mm/m
Color	RAL, PANTONE,GEESHINE color chart or customers' requirement
PE core material	non-toxic low density polyethylene
Back coating	primer coating
Base material	high strength aluminum alloy sheet
Delivery time	5-15 working days after the deposit
Packing	FCL, In bulk,LCL,In wooden pallet package or according to customers' requirement

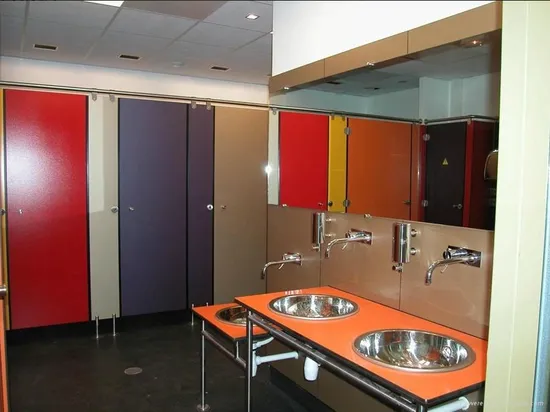

Detailed Image

FAQQ1.How about your delivery time?
a) Standard size & GEESHINE's standard colors-normally within 10 days' lead time;
b) Standard size & custom colors-normally within 15 days' lead time;
c) Non-standard/special size-normally within 20 days' lead time;
Q2.Can I get a sample for free?
A: Yes,the free sample is available with freight collect or prepaid.
Q3.Can you provide the OEM or ODM service?
A:Yes,all kind of the products can be customized according to your requirements.
Q4. How long time for your aluminum composite panel warranty?
A: PVDF coating acp aluminum composite panel is 20 years warranty for the outdoor usage;
PE coating acp is about 10 years with indoor usage;
Q5.What is your MOQ for the aluminum composite panel?
a) Standard size: 500 sq.m./color; special size: 1000 sq.m./color
b) Special colors: 1000 sq.m.

---
