GSK GR-L Series AC Servo Drive Unit The Best for CNC Machining

Product Description

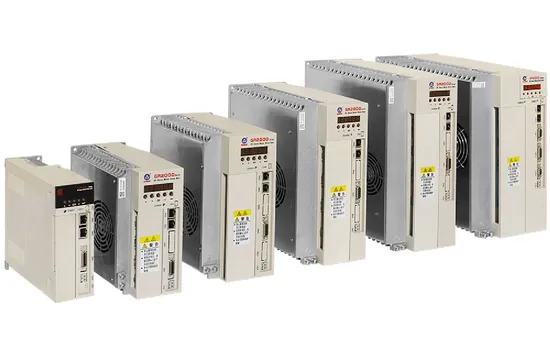

GR-L series servo drive unit

Technical Features

Match 220V, 380V and 440V voltages and meet power demands of different grids

The power is 200W~45kW, meeting with demands of various machine tool power grades

The speed regulation range is wide, meeting various processing demand

The maximum revolving speed is 35000rpm for synchronous motor and 60000rpm for asynchronous motor

The feed motor is provided with a standard configuration of 25bit encoder (33 million lines)

Support a variety of encoder protocols: Heidenhain EnDat2.2, Hengstler BISS-C and Tamagawa SMART communication protocols

Integrate with the direct drive control technology and match linear motor, torque motor and high-speed motorized spindle

Product Description

Communication bus	GSK-Link bus
Operating mode	Manual, inching, speed, position, torque, speed/position, speed/torque and position/torque
Position control	Instruction range: -231~231-1 Instruction unit: 1 position feedback input pulse equivalent
	Electronic gear ratio of position instruction: (1~32767)/(1~32767)
Speed control	Instruction range: -231~231-1 Instruction unit: 0.01rpm Electronic gear ratio of speed instruction: (1~1024)/(1~1024)
	Speed regulation range: 1-35000rpm (synchronous servo); 1-60000rpm (asynchronous servo) Direction function: direction at any angle
Torque control	Instruction range: -231~231 -1 Instruction unit: 0.0001N · m
First position feedback	The standard configuration of feed servo is the 25bit multi-turn absolute encoder which supports BISS-C and Tamagawa SMART communication protocols. The Heidenhain encoder using the EnDat2.2 communication protocol is optional.
	The standard configuration of spindle servo is the 5000p/r incremental encoder and three pairs of A/B/Z differential signal inputs and can be matched with the 100~16383p/r incremental encoder.
Second position feedback	Optical interface for feed servo and standard interface for spindle servo. Input A/B/Z differential signal and match the incremental encoder and grating scale. Support BISS-C and Tamagawa SMART communication protocols. The Heidenhain encoder and grating scale using the EnDat2.2 communication protocol are optional. The sine and cosine encoders are optional as well.

Match GSK CNC system

Match torque motor

Match AC servo motor

Match linear motor

Match asynchronous spindle motor

Match motorized spindle

Match domestic and overseas rotary encoders of various types

Match linear grating scale and magnetic scale

Match SJT series AC servo motor
& .The SJT series motor specification listed in the table is not installed with any power-off brake (brake). If any motor with power-off brake motor is purchased, please add the letter "Z" in Part 4 of the motor model definition. For example, the specification and model of the motor without the power-off brake is 175SJT-M380B(A9II) and the specification and model of the motor with the power-off brake is 175SJT-MZ380B(A9II).
&. Axial extension, installation structure and wiring method of the motor are not provided for the motor model in the table. Please consult GSK or search motor product samples during model selection.
&. List of SJT Series Servo Motors Matchable with GR Series Servo Drive

installation dimension
