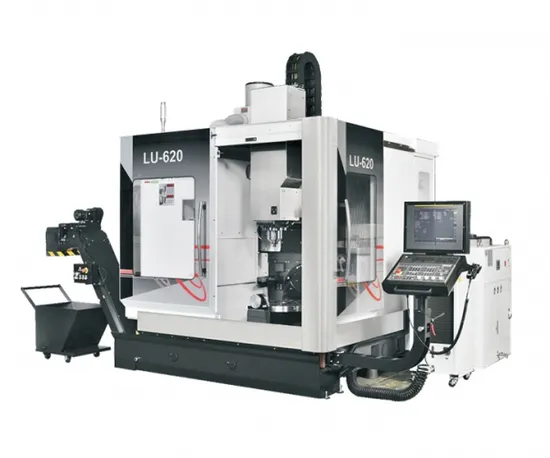

Lu-620 High Precision 5 Axis CNC Vertical Care Turning Milling Machining Lathe Machinery for Metal/Wood/Plastic Cutting Drilling Router Tapping Engraving

US$220,000.00-247,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
LU-620
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Condition
New
X/Y/Z Axes Travel
620/520/460
Spindle Nose to Table Surface
150~610
Spindle Transmission Type
Direct Drive
Tool Shank
ISO 40
Spindle Speed
12000rpm
Magazine Capacity
32t
Taper
Hsk63A
Max.Tool Length
250mm
Max.Tool Diameter(No Adjacent Tool)
75(127)
Spindle Motor(Cont/30mins)
18/21(Siemens)
X/Y/Z Axes Motor Power
6.5/4.5/6.5(Heidenhain)
B/C Axes Motor
8.6/4.5(Heidenhain)
T Slot Type
T18 Radial Type 8 Slots
Max.Work Table Loading
300kg
Transport Package
Wooden Case/ Iron Box
Specification
8800KG
Trademark
Litz
Origin
China
HS Code
8458110090
Production Capacity
200pieces/Year

Product Description

High Precision 5 Axis CNC Vertical Care Turning Milling Machining Lathe Machinery For Metal/Wood/Plastic Cutting Drilling Router Tapping Engraving For Sale
Model LU-620A
Travel
X/Y/Z Axes Travel mm 620/520/460
B Axis Tilting Range .50°~+110°
C Axis Rotating Range 360°
Spindle Nose to Table Surface mm 150~610
Spindle
Spindle Transmission Type Direct Drive
Tool Shank ISO 40
Spindle Speed rpm 12000
ATC
Magazine Capacity T 32
Taper HSK63A
Max.Tool Length mm 250
Max.Tool Diameter(No Adjacent Tool) mm ∅75(∅127)
Motor
Spindle Motor(Cont/30mins) kw 18/21(Siemens)
X/Y/Z Axes Motor Power kw 6.5/4.5/6.5(Heidenhain)
B/C Axes Motor kw 8.6/4.5(Heidenhain)
B/C Axes
Work table Size mm ∅650
Center Hole Size mm ∅55H7X12 in depth
T slot type mm T18 Radial Type 8 Slots
Max.Work table Loading kg 300
Rapid Travel
X/Y/Z M/min 36/36/36
B/C rpm
Cutting Feedrate mm/min 1-20000
Control
Type HEIDENHAIN TNC 640
Miscellaneous
Machine Weight kg 8800
Coolant Tank L 240
Dimension(L*W*H) mm 3863x2730x3310
Power Requirement KVA 25
Air Sourcen kg/cm²(l/min) 6(1600)
